Front Bumper: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

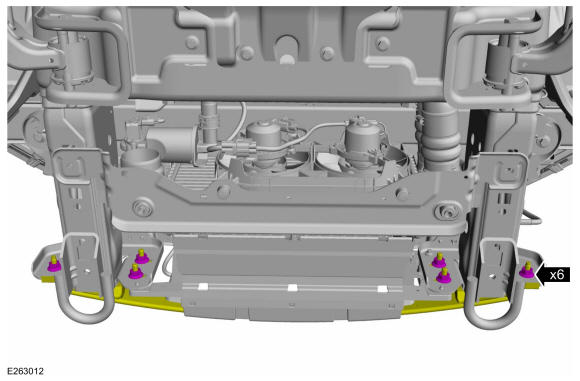

  2. Remove the front bumper nuts.

    Torque: 66 lb.ft (90 Nm)

    GFD275578Courtesy of FORD MOTOR COMPANY

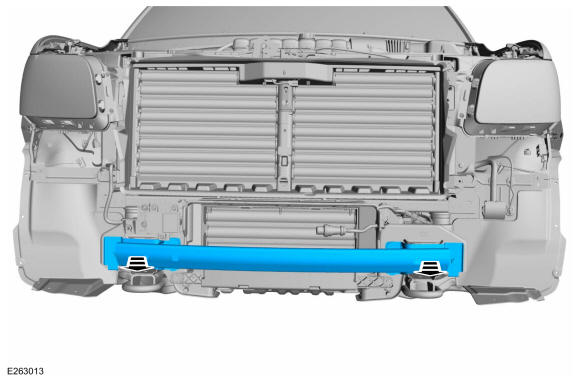

  3. Remove the front bumper.
GFD275579Courtesy of FORD MOTOR COMPANY
