Rear Window Wiper Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Open the liftgate window glass.

Courtesy of FORD MOTOR COMPANY
Remove the wiper pivot shaft trim cover.
1. Remove the wiper pivot shaft trim cover bolts.
  Torque: 28 lb.in (3.2 Nm)
2. Remove the wiper pivot shaft trim cover.
Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainers and the upper wiper motor trim cover.

Courtesy of FORD MOTOR COMPANY
Close the liftgate window glass.

Courtesy of FORD MOTOR COMPANY

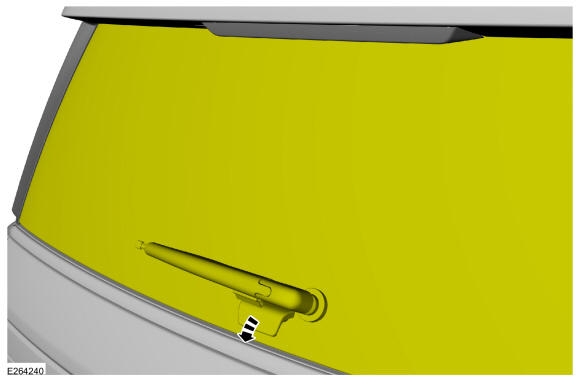

Remove the rear window wiper pivot arm. Refer to: Rear Window Wiper Pivot Arm .
Remove the pivot shaft nut cover.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the pivot shaft nut.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the liftgate trim panel. Refer to: LIFTGATE TRIM PANEL .

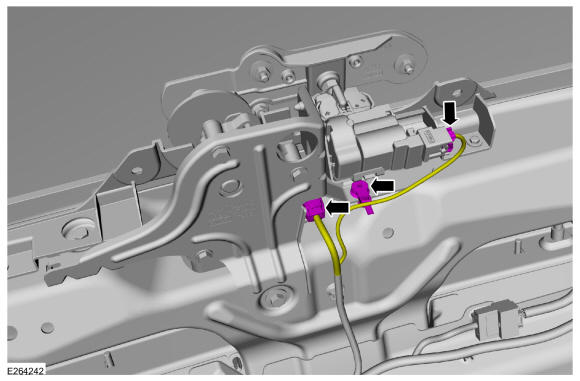

Disconnect the wiper motor and liftgate window latch electrical connectors, detach the wiring retainer and position the wiring aside.

Courtesy of FORD MOTOR COMPANY

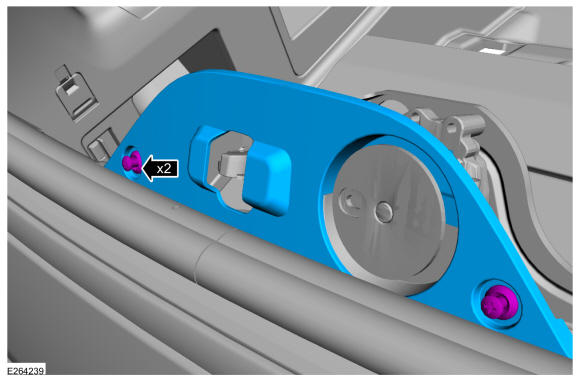

1. Remove the lower wiper motor trim cover screws.
2. Remove the wiper arm and pivot shaft nuts.
  Torque: 53 lb.in (6 Nm)

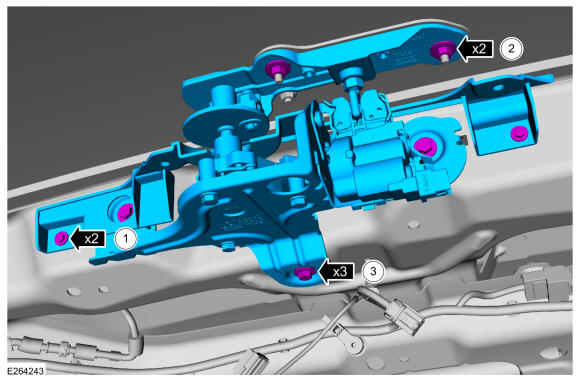

3. Remove the wiper motor and bracket assembly bolts and the wiper motor and bracket assembly.
  Torque: 97 lb.in (11 Nm)
