Remote Keyless Entry (RKE) Exterior Sounder: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

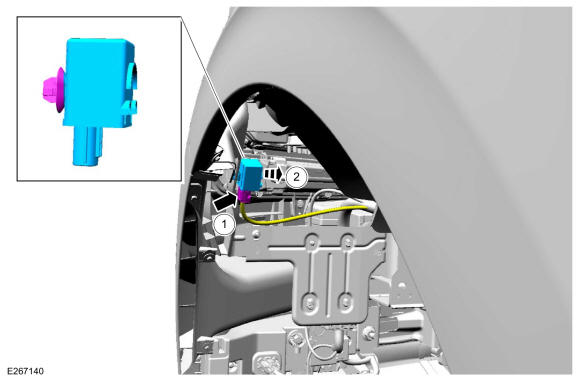

  1. On the left side. Remove the fender splash shield. Refer to: Fender Splash Shield .
  2. Remove the RKE exterior sounder.

    1. Disconnect the RKE exterior sounder electrical connector.
    2. Release the pin-type retainer and remove the RKE exterior sounder.

GFD275479Courtesy of FORD MOTOR COMPANY
