Liftgate Latch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

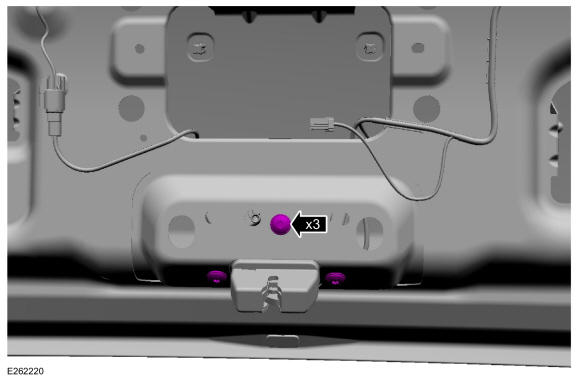

  2. Remove the liftgate latch bolts.

    Torque: 177 lb.in (20 Nm)

    GFD275464Courtesy of FORD MOTOR COMPANY

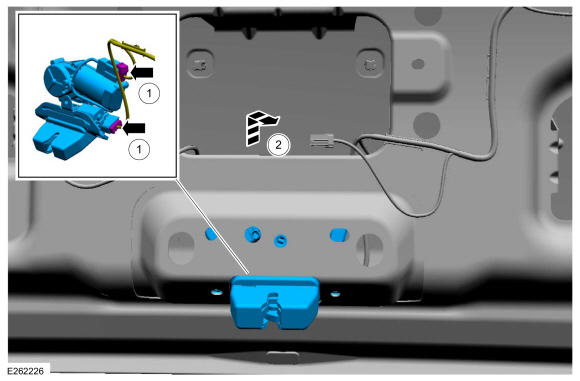

  3. Remove the liftgate latch.

    1. Disconnect the liftgate latch electrical connectors.
    2. Remove the liftgate latch.

GFD275465Courtesy of FORD MOTOR COMPANY
