Approach Detection Antenna: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

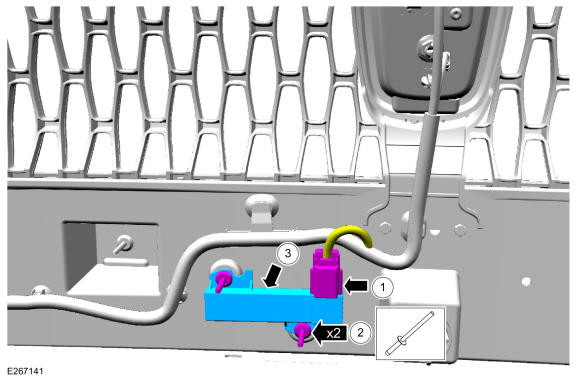

  2. Remove the approach detection antenna.

    1. Disconnect the approach detection antenna electrical connector.
    2. Remove the rivets from the approach detection antenna. Use the General Equipment: Rivet Gun
    3. Remove the approach detection antenna.

GFD275418Courtesy of FORD MOTOR COMPANY
