System Diagram

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

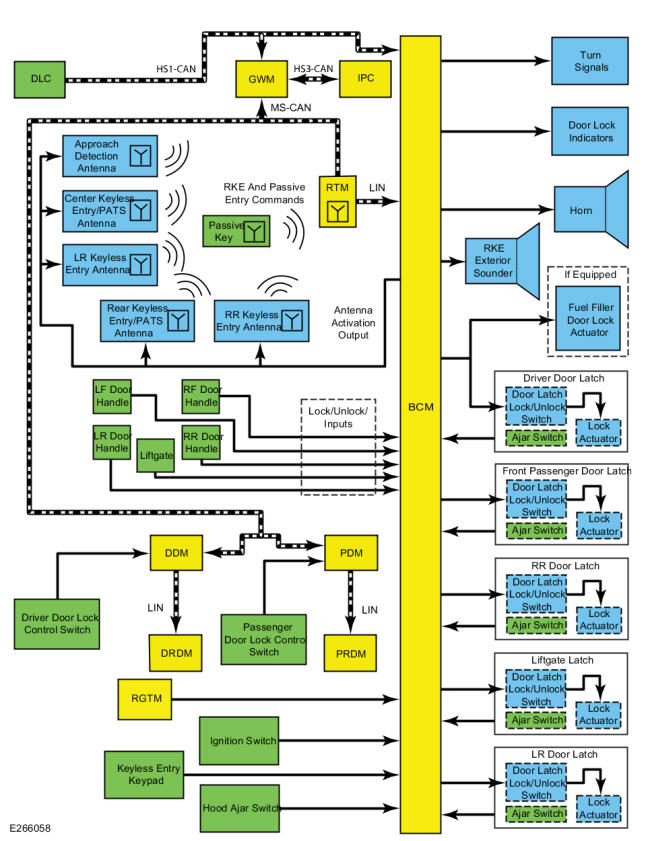

GFD275405Courtesy of FORD MOTOR COMPANY
