Instrument Panel Center Finish Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

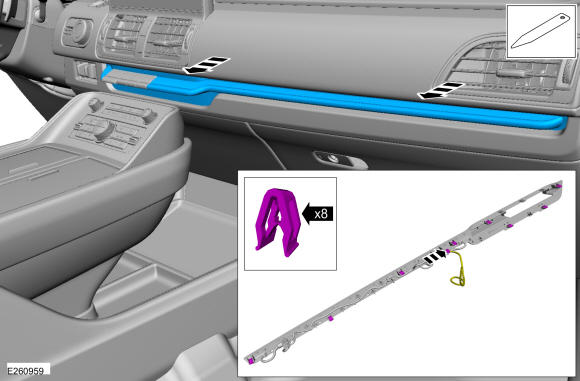

  1. Release the clips and remove the center finish panel.

    • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

    GFD275383Courtesy of FORD MOTOR COMPANY
  2. Remove the bolts and the shifter module.

    • Disconnect the electrical connector.

    GFD275384Courtesy of FORD MOTOR COMPANY
  3. Release the clips and remove the FDIM rear cover. Use the General Equipment: Interior Trim Remover
    GFD275385Courtesy of FORD MOTOR COMPANY

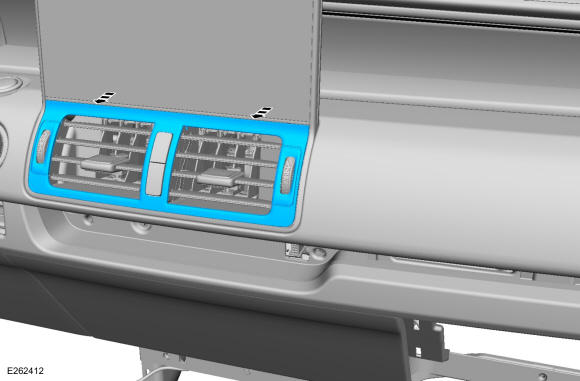

  4. Remove the center vent trim panel.
    GFD275386Courtesy of FORD MOTOR COMPANY

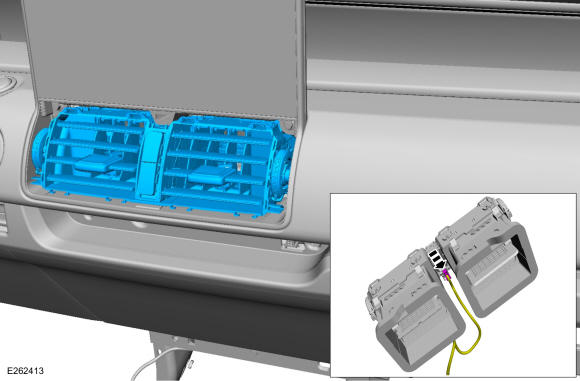

  5. Remove the center vent and disconnect the electrical connector.
    GFD275387Courtesy of FORD MOTOR COMPANY

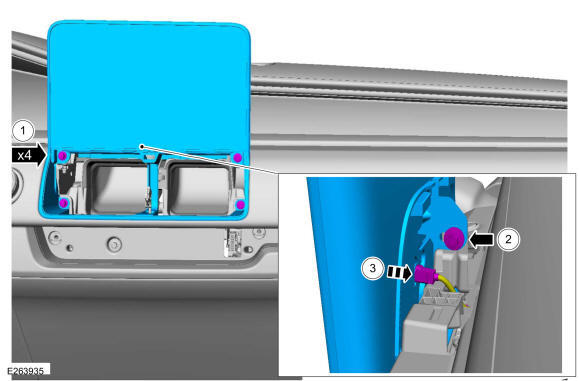

  6. Remove the bolts and the FDIM.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD275388Courtesy of FORD MOTOR COMPANY
  7. Release the clips and remove the upper RH instrument panel finish panel.
    GFD275389Courtesy of FORD MOTOR COMPANY

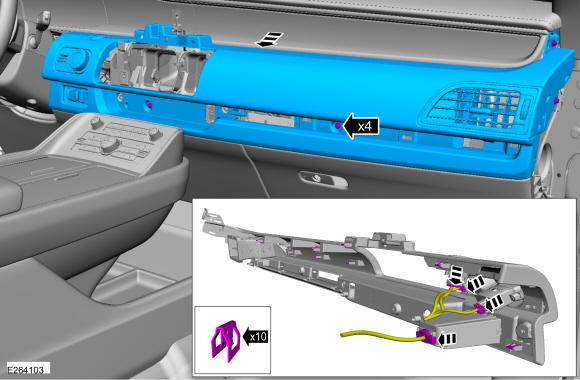

  8. Remove the bolts and the instrument panel center finish panel.

    • Disconnect the electrical connectors.

GFD275390Courtesy of FORD MOTOR COMPANY
