Rear Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the fore rear door upper moulding. Refer to: Rear Door Upper Moulding .
  2. Remove the rear door trim panel. Refer to: Rear Door Trim Panel .
  3. Remove the watershield.
    GFD275322Courtesy of FORD MOTOR COMPANY
  4. Lower the rear door window glass to full down position.

    1. Connect the rear door trim panel wiring harness electrical connector.
    2. Lower the rear door window glass to full down position.
    3. Disconnect the rear door trim panel wiring harness electrical connector.

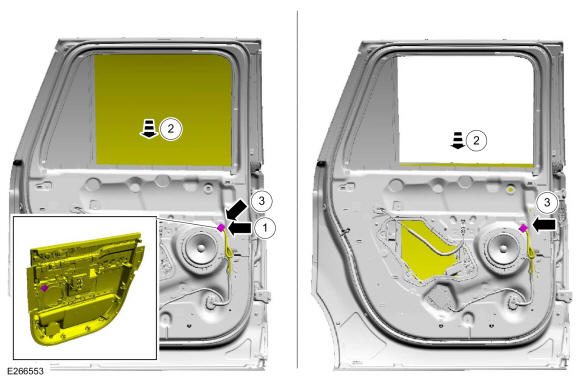

    GFD275331Courtesy of FORD MOTOR COMPANY
  5. Remove the pin-type retainers and the upper interior rear door trim.

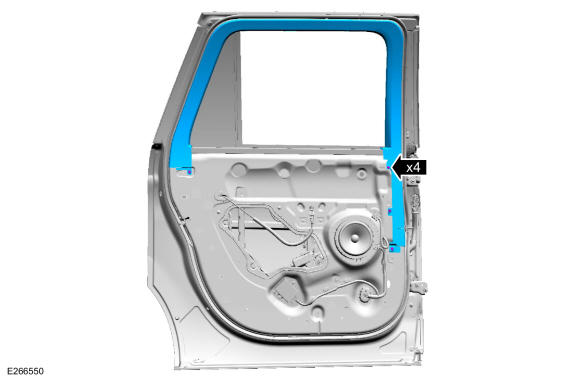

    GFD275332Courtesy of FORD MOTOR COMPANY
  6. Remove the rear door inner belt moulding.

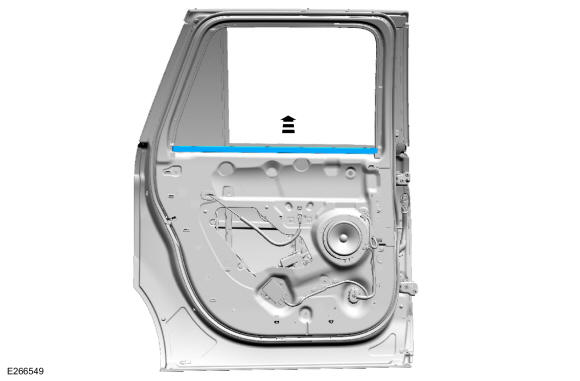

    GFD275333Courtesy of FORD MOTOR COMPANY
  7. Position the rear door glass top run aside.

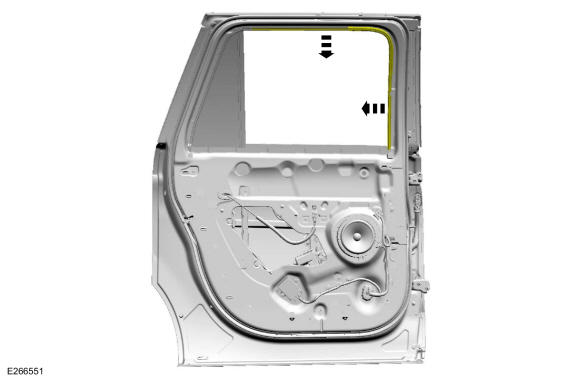

    GFD275334Courtesy of FORD MOTOR COMPANY
  8. Remove the rear door glass.

    1. Connect the rear door trim panel wiring harness electrical connector.
    2. Raise the rear door window glass to half up position.
    3. Disconnect the rear door trim panel wiring harness electrical connector.
    4. Release the clip from rear door window glass. Use the General Equipment: Interior Trim Remover
    5. Remove the rear door glass.

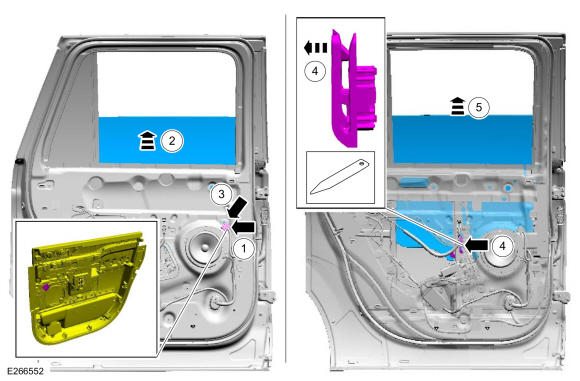

GFD275335Courtesy of FORD MOTOR COMPANY
