Rear Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the rear door trim panel. Refer to: Rear Door Trim Panel .

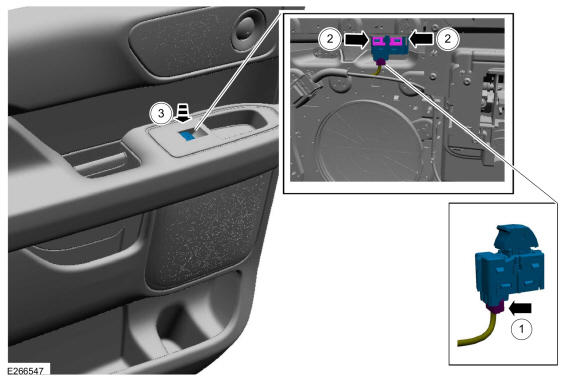

  2. Remove the rear door window control switch.

    1. Disconnect the rear door window control switch electrical connector.
    2. Release the locking tabs from the rear door window control switch.
    3. Remove the rear door window control switch from the rear door trim panel.

GFD275330Courtesy of FORD MOTOR COMPANY
