Rear Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door window glass. Refer to: Rear Door Window Glass .

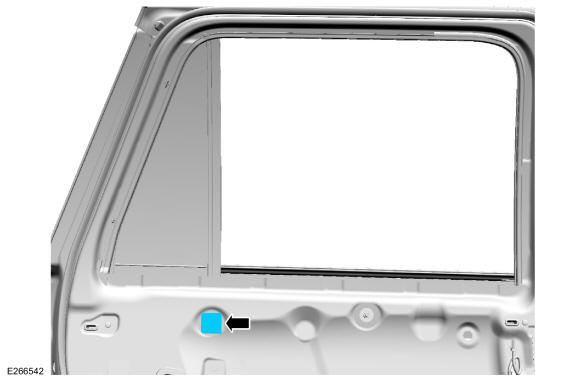

Remove the adhesive tape cover.

Courtesy of FORD MOTOR COMPANY

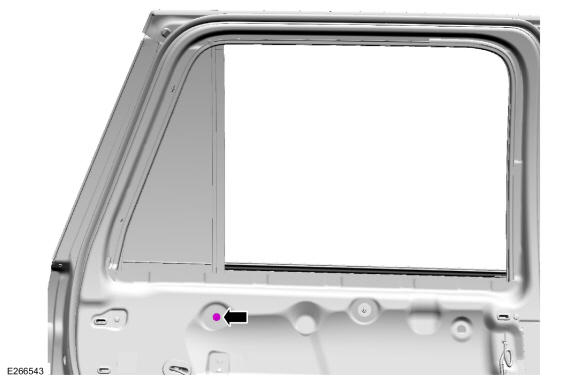

Remove the bolt from the rear door glass top run.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

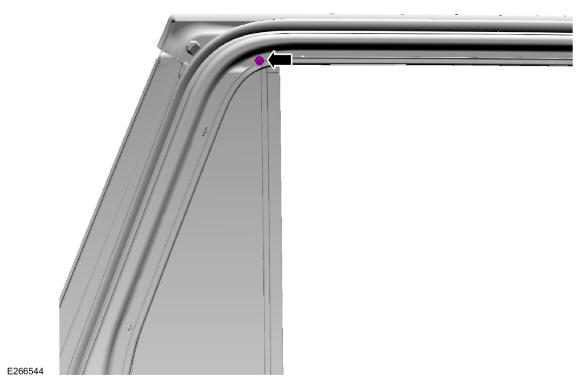

Remove the screw from the rear door glass top run.
Torque

: 8 lb.in (0.9 Nm)

Courtesy of FORD MOTOR COMPANY

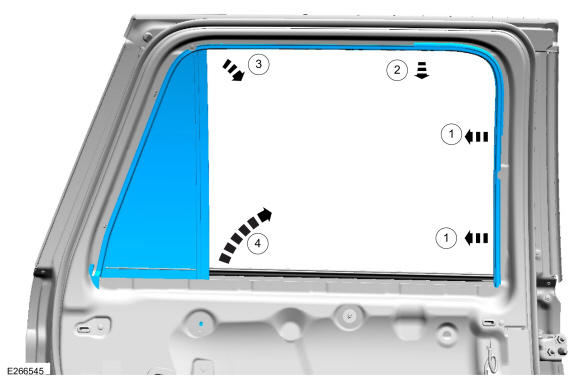

Remove the rear door glass top run.
1. Remove the rear door glass top run the door frame channel.
2. Remove the rear door glass top run the door frame channel.
3. Remove the rear door glass top run the door frame channel.
4. Remove the rear door glass top run.

Courtesy of FORD MOTOR COMPANY
