Passenger Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger front door trim panel. Refer to: Front Door Trim Panel .

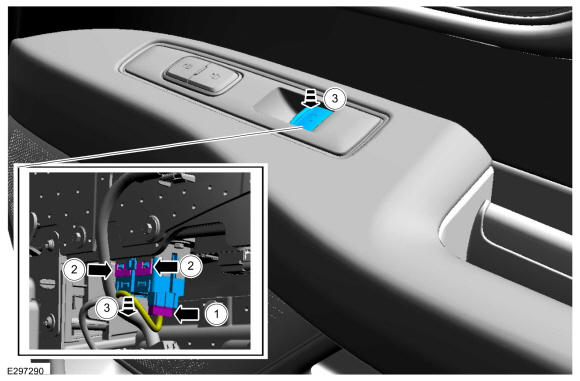

  2. Remove the passenger door window control switch.

    1. Disconnect the passenger door window control switch electrical connector.
    2. Release the locking tabs from the passenger door window control switch.
    3. Remove the passenger door window control switch from the passenger front door trim panel.

GFD271190Courtesy of FORD MOTOR COMPANY
