Front Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front door window regulator and motor. Refer to: Front Door Window Regulator and Motor .

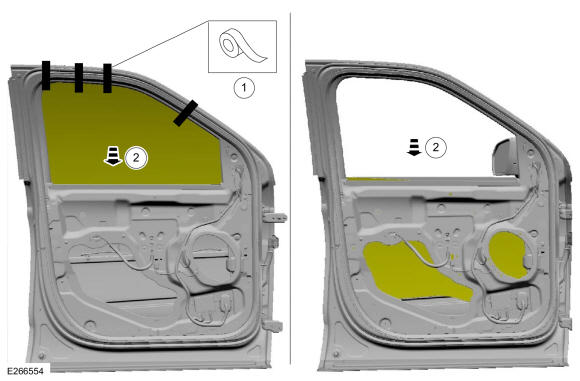

  2. Remove tape and lower the front door window glass to full down position.

    1. Remove tape.
    2. Lower the front door window glass to full down position.

    GFD275301Courtesy of FORD MOTOR COMPANY

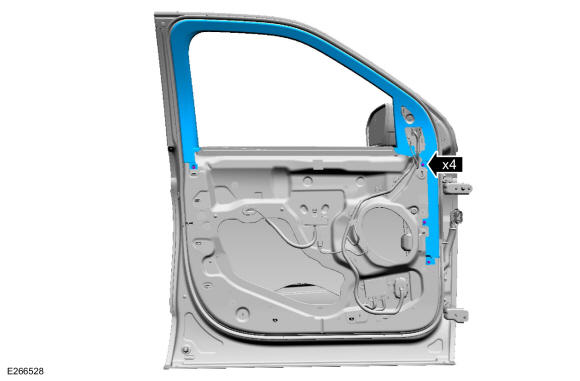

  3. Remove the pin-type retainers and the front door upper trim.
    GFD275302Courtesy of FORD MOTOR COMPANY

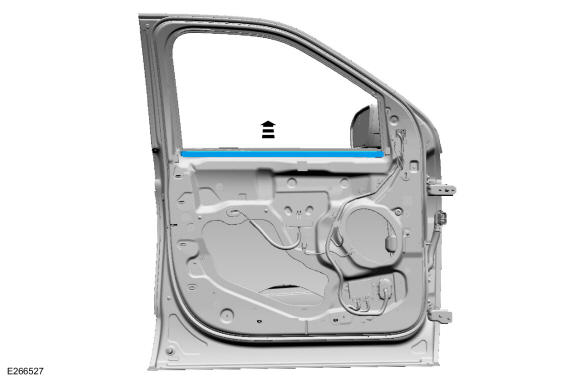

  4. Remove the front door inner belt moulding.
    GFD275303Courtesy of FORD MOTOR COMPANY

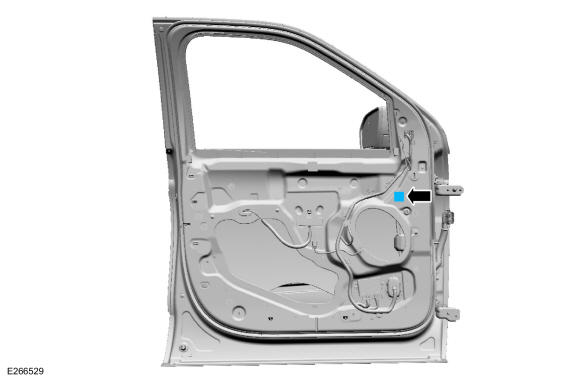

  5. Remove the front door glass top run bolt adhesive cover.
    GFD275304Courtesy of FORD MOTOR COMPANY

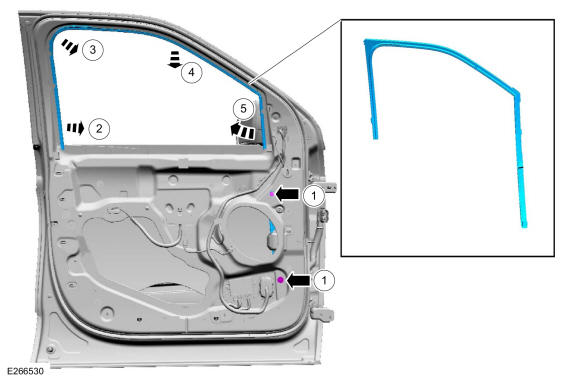

  6. Remove the front door glass top run.

    1. Remove the front door glass top run bolts.

      Torque: 71 lb.in (8 Nm)

    2. Release the front door glass top run from the door run channel.
    3. Release the front door glass top run from the door run channel.
    4. Release the front door glass top run from the door run channel.
    5. Remove the front door glass top run.

GFD275305Courtesy of FORD MOTOR COMPANY
