System Diagram - Rear Window Defrost (If Equipped With Touchscreen)

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

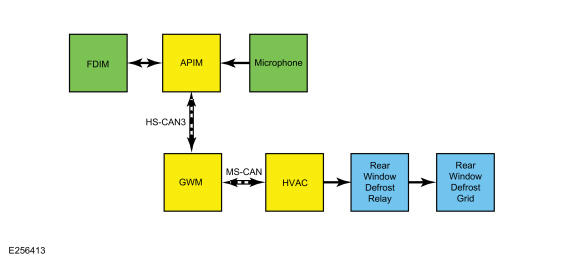

GFD275292Courtesy of FORD MOTOR COMPANY
Item Description
1 FDIM
2 APIM
3 Microphone
4 HS-CAN3
5 GWM
6 HVAC
7 Rear Window Defrost Relay
8 Rear Window Defrost Grid
9 MS-CAN
