System Diagram - Power Windows
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

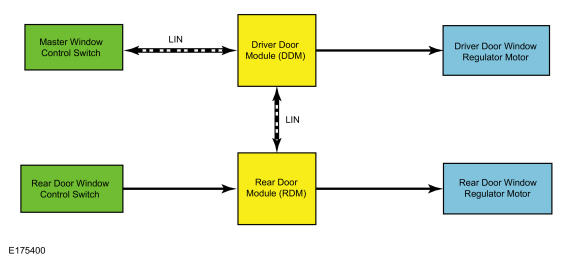

Driver Side Door Windows
| Item | Description |
|---|---|
| 1 | Master Window Control Switch |
| 2 | Driver Door Module (DDM) |
| 3 | Driver Door Window Regulator Motor |
| 4 | Rear Door Window Control Switch |
| 5 | Rear Door Module (RDM) |
| 6 | Rear Door Window Regulator Motor |
| 7 | LIN |
| 8 | LIN |

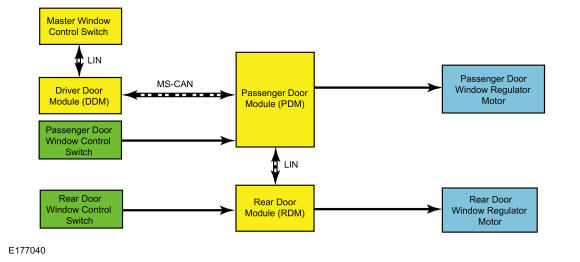

Passenger Side Door Windows
| Item | Description |
|---|---|
| 1 | Driver Door Module (DDM) |
| 2 | MS-CAN |
| 3 | Passenger Door Module (PDM) |
| 4 | Passenger Door Window Regulator Motor |
| 5 | Passenger Door Window Control Switch |
| 6 | LIN |
| 7 | Rear Door Window Control Switch |
| 8 | Rear Door Module (RDM) |
| 9 | Rear Door Window Regulator Motor |
| 10 | Master Window Control Switch |
| 11 | LIN |
