Third Row Single Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the third row seat head restraint guide sleeves. Refer to: Third Row Seat Head Restraint Guide Sleeve .
Remove the third row single seat backrest cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the backrest foam.

NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam.

NOTE: This step is only necessary when installing a new component.

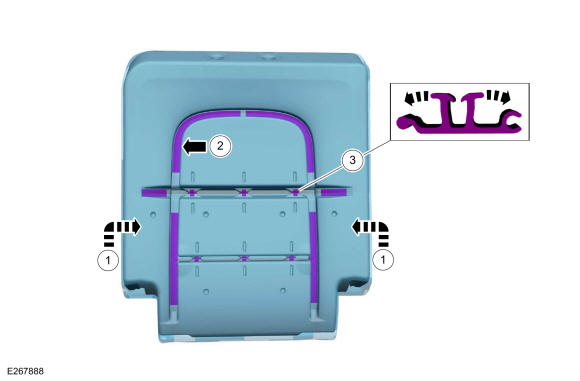

Remove the third row single seat backrest cover.
1. Invert the backrest cover.
2. Release the hook-and-loop strips.
3. Release the hook-and-arrows.

Courtesy of FORD MOTOR COMPANY
