Third Row Double Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the third row double seat. Refer to: Third Row Seat .

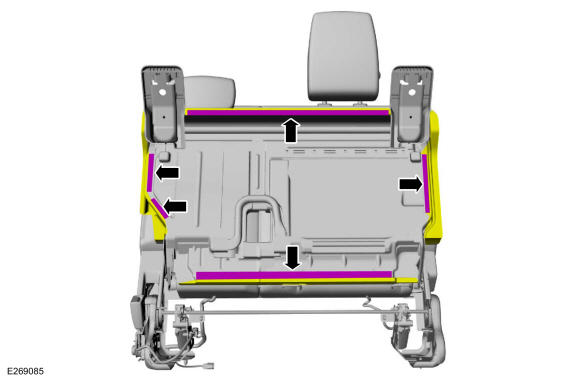

Detach the third row double seat cushion cover J-clips.

Courtesy of FORD MOTOR COMPANY

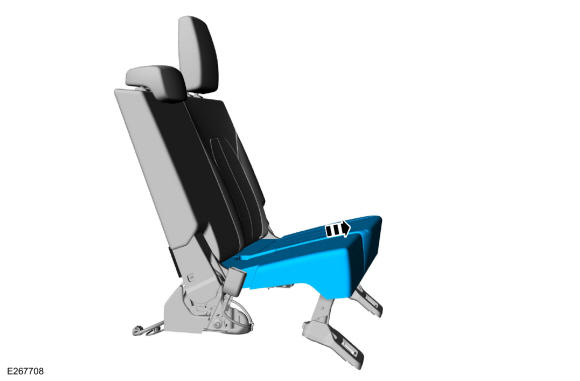

Remove the third row double seat cushion cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the cushion cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the cushion foam.

NOTE: Use care when separating the cushion cover from the hook-and-arrows, or the hooks can be torn from the cushion foam.

NOTE: This step is only necessary when installing a new component.

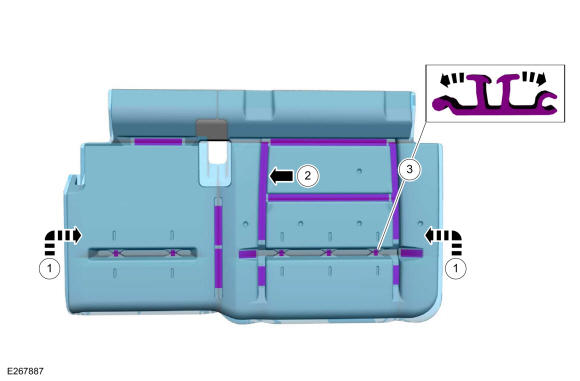

Remove the third row double seat cushion cover.
1. Invert the cushion cover.
2. Release the hook-and-loop strips.
3. Release the hook-and-arrows.

Courtesy of FORD MOTOR COMPANY
