Second Row Single Seat Easy Entry Seat Fold Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
Position the rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Long wheelbase shown, short wheelbase similar.

Release the clips and remove the rear scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY
Position the second row seat forward.

Courtesy of FORD MOTOR COMPANY
Position the weatherstrip away from the C-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the loadspace trim panel screw cover and the screws. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: Second row seat removed for clarity.

NOTE: Short wheelbase shown, long wheelbase similar.

Release the clips and position the load space trim panel away enough to access the second row single seat easy entry seat fold switch.

Courtesy of FORD MOTOR COMPANY

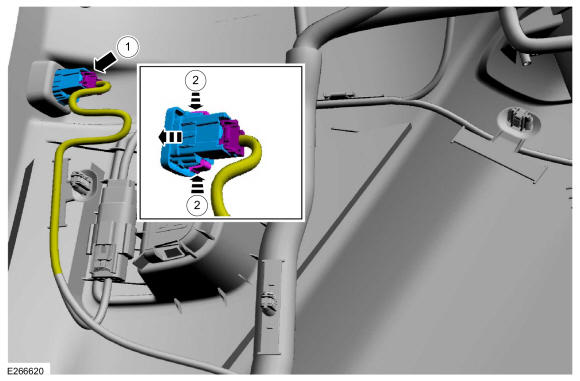

Remove the second row single seat easy entry seat fold switch.
1. Disconnect the electrical connector.
2. Depress the tabs.

Courtesy of FORD MOTOR COMPANY
