Second Row Seat: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH second row seat shown, RH similar.
  1. If equipped with inflatable seatbelts, depower the SRS Refer to: Supplemental Restraint System (SRS) Depowering .
  2. Position the rear door weatherstrip aside.
    GFD274866Courtesy of FORD MOTOR COMPANY
  3. NOTE: Long wheelbase shown, short wheelbase similar.

    Release the clips and remove the rear door scuff plate trim panel.

    GFD274867Courtesy of FORD MOTOR COMPANY

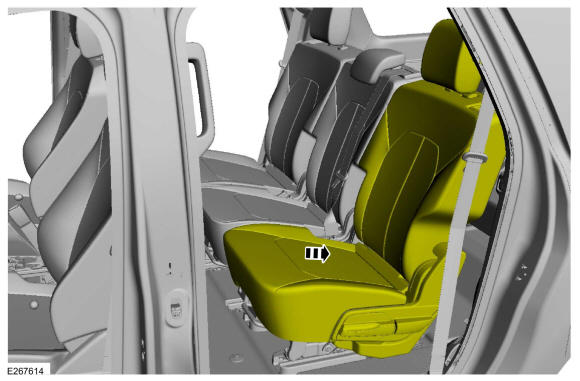

  4. Move the seat to the full rearward position.
    GFD275213Courtesy of FORD MOTOR COMPANY

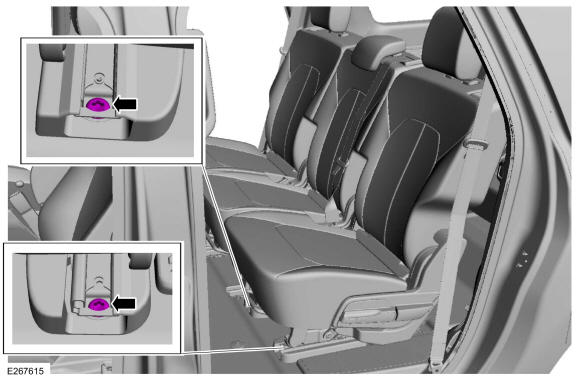

  5. NOTE: Follow the unique instructions or graphics for this step in the installation.

    Remove the second row seat front bolts.

    GFD275214Courtesy of FORD MOTOR COMPANY
  6. Move the seat to the full forward position.
    GFD275215Courtesy of FORD MOTOR COMPANY

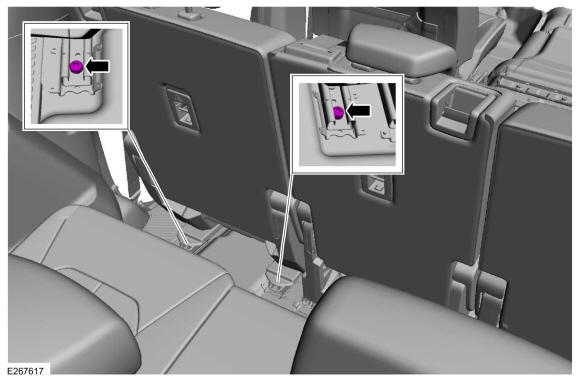

  7. NOTE: Follow the unique instructions or graphics for this step in the installation.

    Remove the second row seat rear bolts.

    GFD275216Courtesy of FORD MOTOR COMPANY

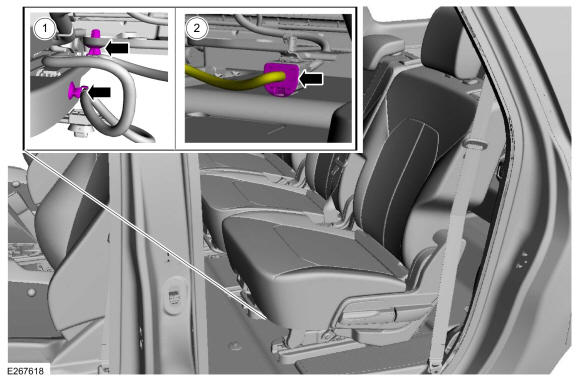

  8. Disconnect the second row seat electrical connector.

    1. Remove the floor wiring harness pin-type retainers.
    2. Disconnect the electrical connector.

    GFD275217Courtesy of FORD MOTOR COMPANY

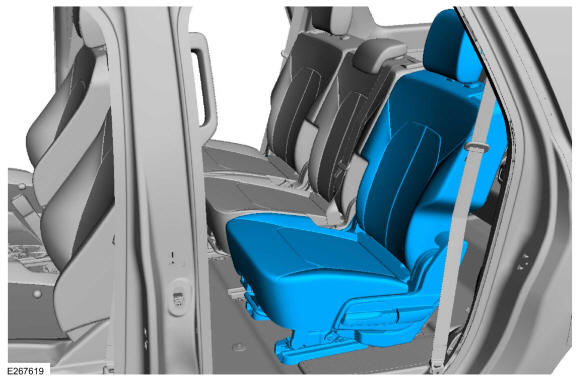

  9. Remove the second row seat.
GFD275218Courtesy of FORD MOTOR COMPANY
