Second Row Seat Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Typical head restraint guide sleeve shown, others similar.

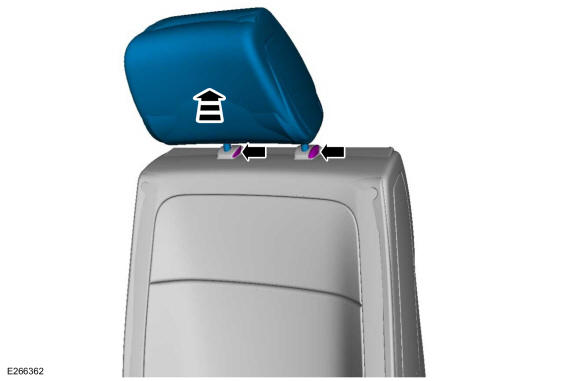

Depress the tabs and remove the head restraint.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphic for this step in the installation.

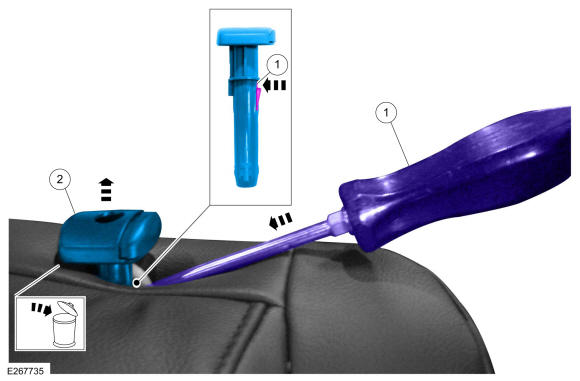

Remove the head restraint guide sleeve.
1. Release the tab. Use the General Equipment: Flat Headed Screw Driver
2. Remove the head restraint guide sleeve.

Courtesy of FORD MOTOR COMPANY
