Second Row Center Seat: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the seat to the full rearward position.
    GFD275189Courtesy of FORD MOTOR COMPANY

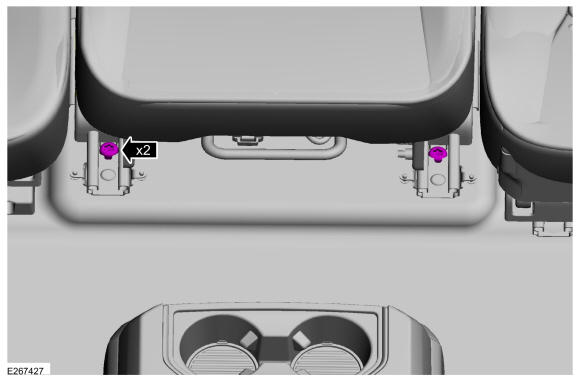

  2. NOTE: Follow the unique instructions or graphics for this step in the installation.

    Remove the second row center seat front bolts.

    GFD275190Courtesy of FORD MOTOR COMPANY

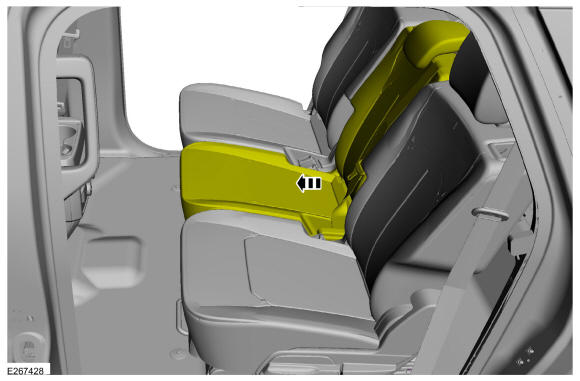

  3. Move the seat to the full forward position.
    GFD275191Courtesy of FORD MOTOR COMPANY

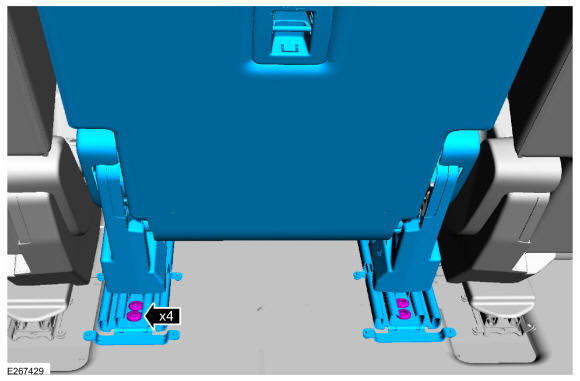

  4. NOTE: Follow the unique instructions or graphics for this step in the installation.

    Remove the second row center seat rear bolts.

    GFD275192Courtesy of FORD MOTOR COMPANY

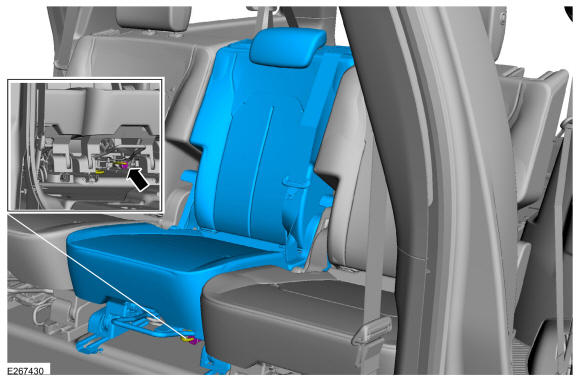

  5. Remove the second row center seat.

    • Disconnect the electrical connector.

GFD275193Courtesy of FORD MOTOR COMPANY
