Second Row Center Seat: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
    1. Install the LH rear bolts.

      Torque: 35 lb.ft (47.5 Nm)

    2. Install the RH rear bolts.

      Torque: 35 lb.ft (47.5 Nm)

    3. Install the LH front bolt.

      Torque: 35 lb.ft (47.5 Nm)

    4. Install the RH front bolt.

      Torque: 35 lb.ft (47.5 Nm)

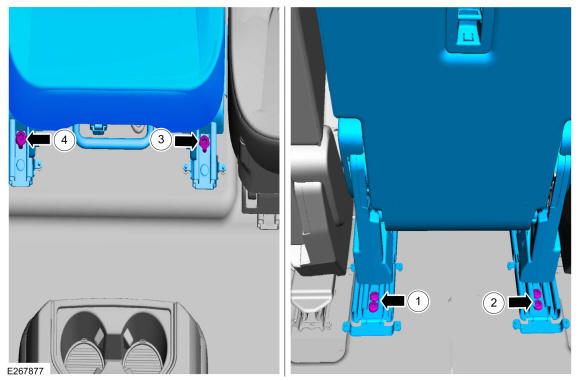

GFD275194Courtesy of FORD MOTOR COMPANY
