Second Row Center Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the second row center seat. Refer to: Second Row Center Seat .
Remove the second row center seat head restraint guide sleeves. Refer to: Second Row Seat Head Restraint Guide Sleeve .
Remove the second row seat manual release handle. Refer to: Second Row Seat Manual Release Handle .

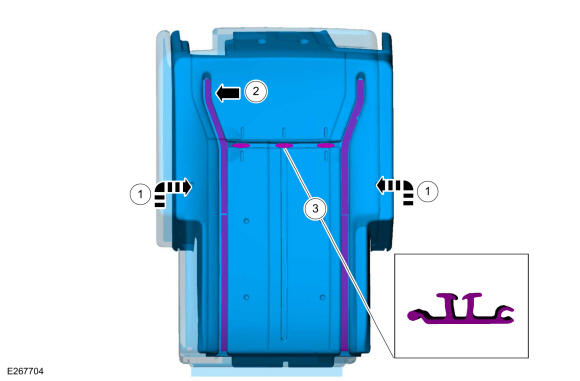

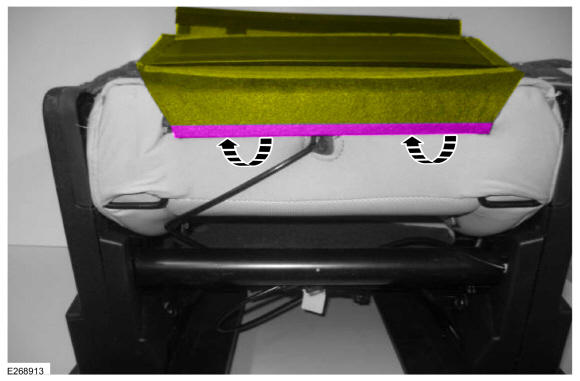

1. Release the hook-and-loop strip and position the second row center seat cushion strap aside.

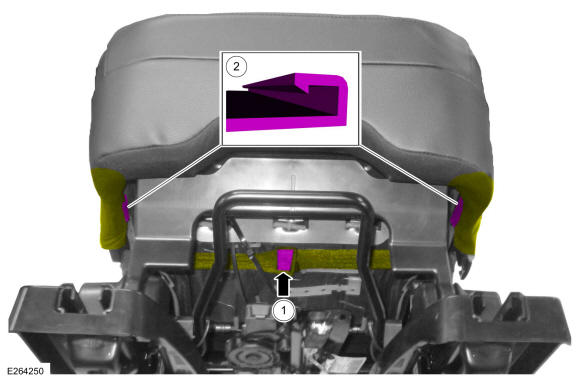

2. Detach the second row center seat cushion cover side J-clips.
Courtesy of FORD MOTOR COMPANY

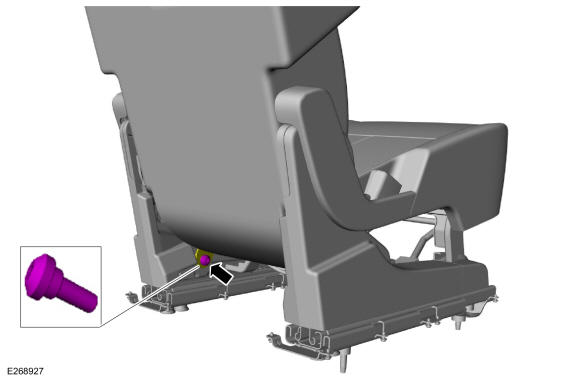

Remove the second row center seatbelt anchor bolt and position the anchor aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

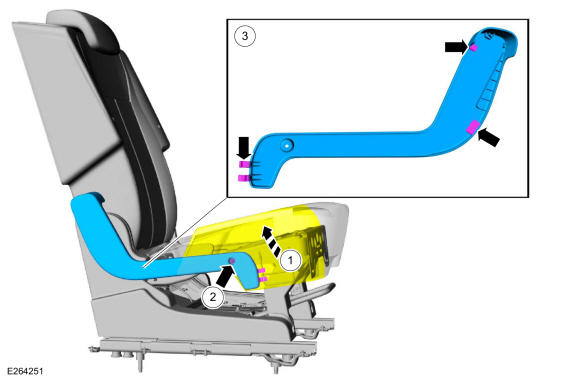

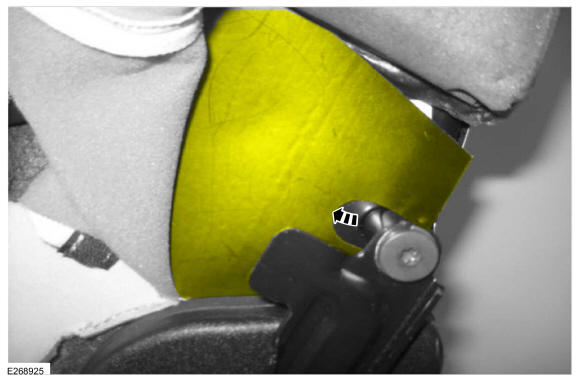

On both sides.Remove the second row center seat cushion pivot arm covers.
1. Raise the side of the seat cushion cover and foam.
2. Remove the screw.
3. Release the retainers.
Courtesy of FORD MOTOR COMPANY

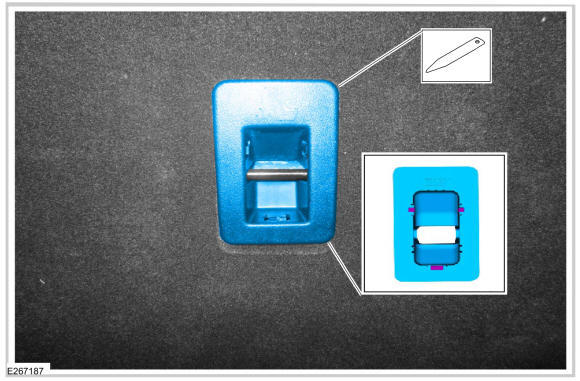

Remove the child safety seat tether anchor bezel.

Courtesy of FORD MOTOR COMPANY

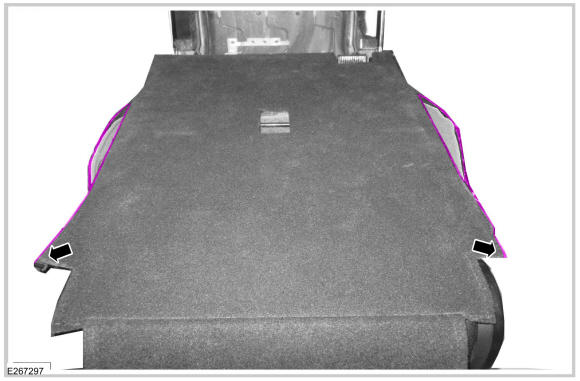

On both sides.Unzip the second row center seat backrest cover.

Courtesy of FORD MOTOR COMPANY
Release the second row center seat backrest cover retainers.

Courtesy of FORD MOTOR COMPANY
Remove the second row center seat backrest J-clip.

Courtesy of FORD MOTOR COMPANY

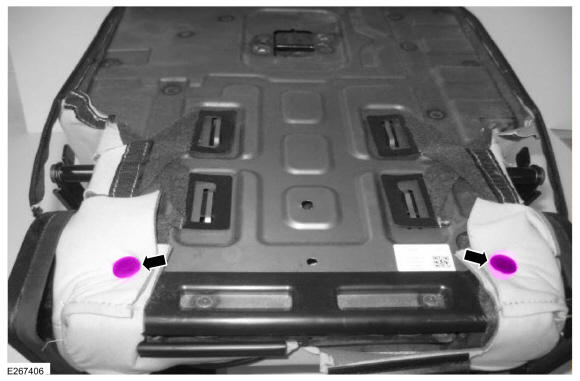

Remove the second row center seat backrest cover pin-type retainers.

Courtesy of FORD MOTOR COMPANY

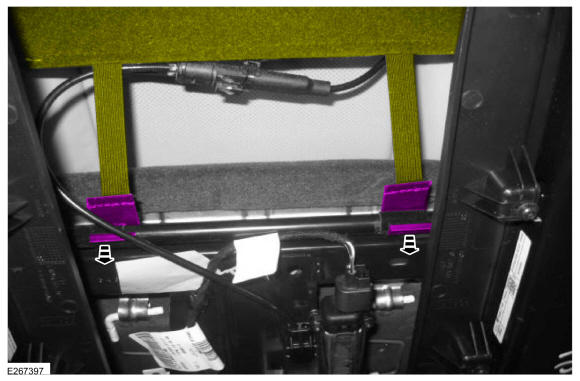

Detach the second row center seat backrest cover retainers and position the straps and retainers through the inside of the side shields to the front of the seat.

Courtesy of FORD MOTOR COMPANY
Position the second row center seat backrest cover retainer forward.

Courtesy of FORD MOTOR COMPANY

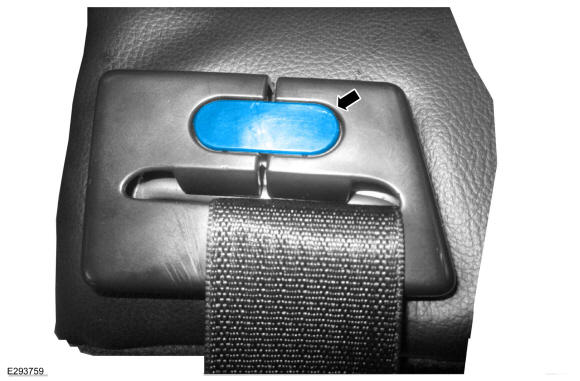

Remove the center seatbelt retractor bezel screw cover.

Courtesy of FORD MOTOR COMPANY

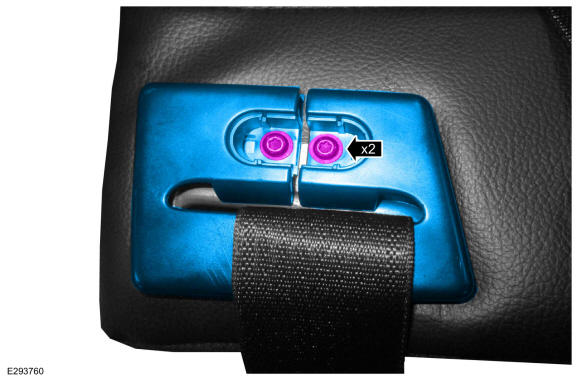

Remove the screws and the center seatbelt retractor bezel.

Courtesy of FORD MOTOR COMPANY

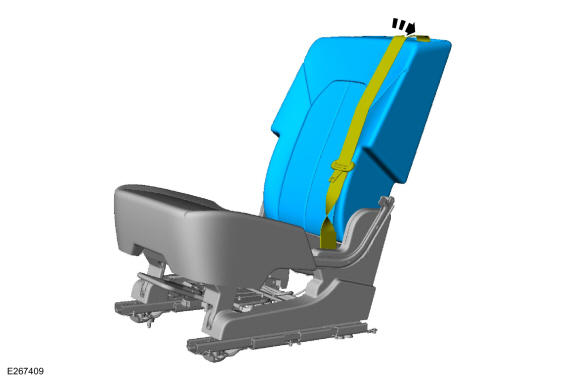

Remove the second row center seat backrest cover and foam as an assembly.
- Route seatbelt through backrest cover and foam.
Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam pad.

NOTE: Use care when separating the backrest trim cover from the hook-and-loop strips or the hook-and -loop strips may be torn from the back rest foam pad.

NOTE: This step is only necessary when installing a new component.

Invert the cover, release the retainers and remove the second row center seat backrest cover.

Courtesy of FORD MOTOR COMPANY
