Front Seat Track Motor: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

All seats

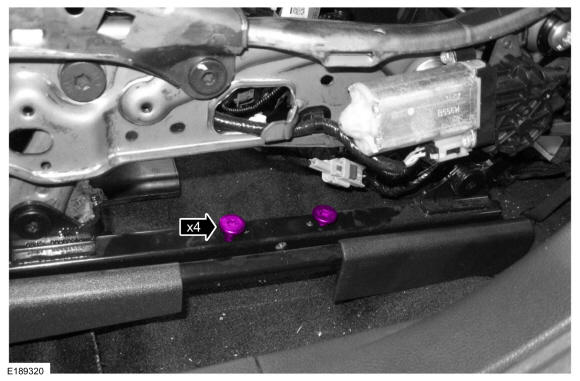

  1. NOTE: Typical front seat track shown, other seat tracks similar.
    NOTE: Use the bolts from the old front seat track motor.
    NOTE: Seat side shield removed for clarity.

    On both sides. Install the front seat track motor bolts.

    Torque: 21 lb.ft (28 Nm)

    GFD275169Courtesy of FORD MOTOR COMPANY

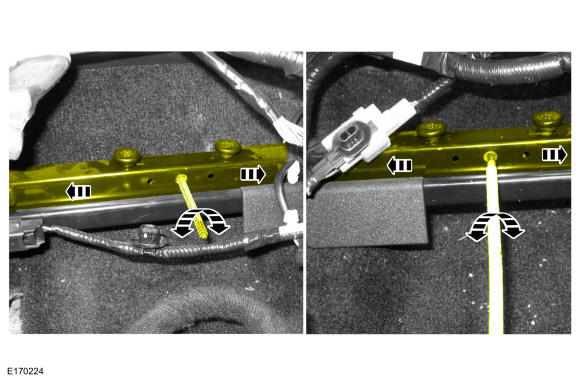

  2. NOTE: When using a drill to move the front seat track, do not move the seat track to its forward or rearward end of travel stops, otherwise a new front seat track must be installed.
    NOTE: Typical front seat track shown, other seat tracks similar.
    NOTE: Be sure to drive the seat track evenly or the track will bind during movement.
    NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

    Insert the original front seat track motor drive cables and drive the gearbox and seat track uniformly until the rear edge of the upper and lower seat tracks are aligned. Use the General Equipment: Electric Drill

    GFD275170Courtesy of FORD MOTOR COMPANY

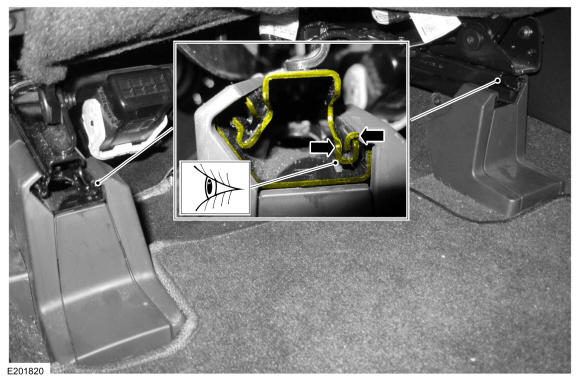

  3. NOTE: Typical seat track shown, other seat tracks similar.

    The rear edges of the upper and lower seat track rails must align with each other on both sides of the seat.

    GFD275171Courtesy of FORD MOTOR COMPANY

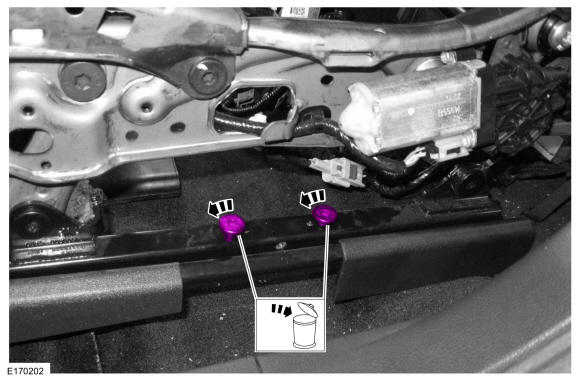

  4. NOTE: Typical seat track shown, other seat tracks similar.
    NOTE: Seat side shield removed for clarity.

    On both sides. Remove the front seat track motor bolts.

    GFD275172Courtesy of FORD MOTOR COMPANY

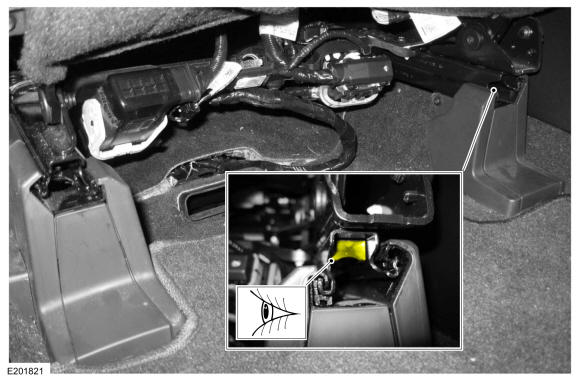

  5. NOTE: Typical seat track shown, other seat tracks similar.
    NOTE: Install a new seat track if the block is not in place.

    Verify the block is in place at the rear of the inboard seat track rail.

    GFD275173Courtesy of FORD MOTOR COMPANY

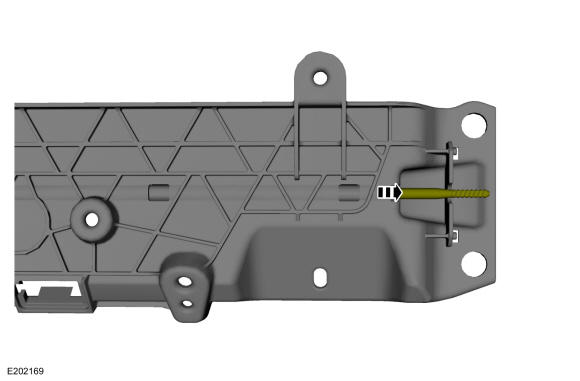

  6. NOTE: Typical seat track shown, other seat tracks similar.

    To aid installation. Pull the long drive cable on the new front seat track motor assembly out of the sheathing.

    GFD275174Courtesy of FORD MOTOR COMPANY

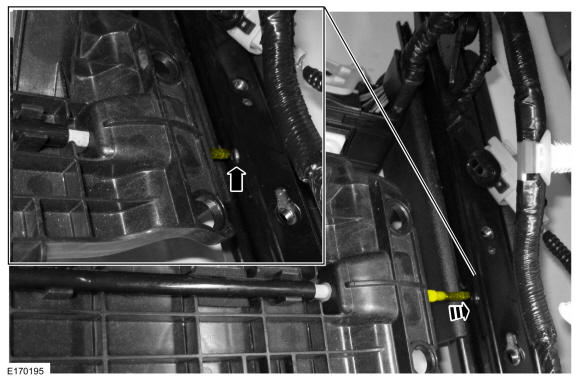

  7. NOTE: Typical front seat track motor shown, other front seat track motors similar.

    Insert the long drive cable into the seat track gearbox.

    GFD275175Courtesy of FORD MOTOR COMPANY

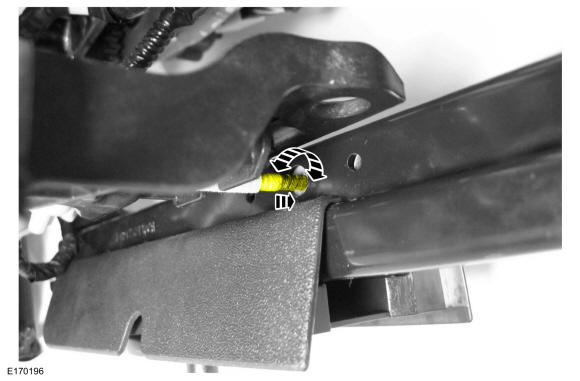

  8. NOTE: Typical seat track shown, other seat tracks similar.

    Rotate the long drive cable to verify engagement to seat track gearbox.

    GFD275176Courtesy of FORD MOTOR COMPANY

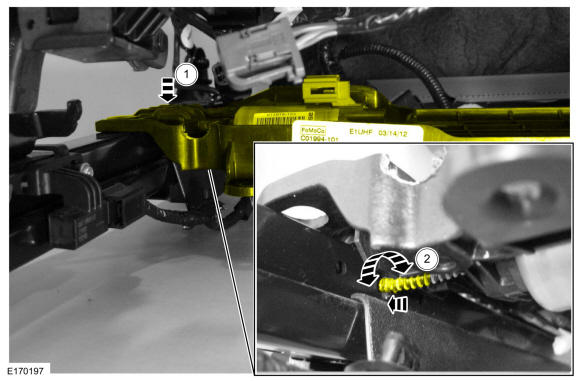

  9. NOTE: Do not severely bend the short drive cable during installation or damage to the cable will occur.
    NOTE: Typical front seat track motor shown, other seat track motors similar.

    Insert the short drive cable into the seat track gearbox.

    1. Position the seat track motor while inserting the short cable into the seat track gearbox.
    2. Rotate the short drive cable to verify engagement to the seat track gearbox.

    GFD275177Courtesy of FORD MOTOR COMPANY

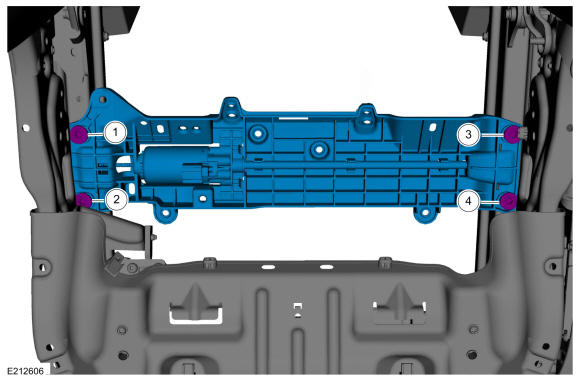

  10. NOTE: Do not cross-thread the bolts, they are load-bearing. If the bolts are cross-threaded, a new seat track must be installed.
    NOTE: Seat track components and wiring harness are removed for clarity.

    Install the seat track motor and install the new bolts in the sequence shown.

    Torque: 21 lb.ft (28 Nm)

    Fig 1: Seat Track Motor Bolts Tightening Sequence
    GFD275178Courtesy of FORD MOTOR COMPANY
  11. Attach the electrical connectors and wiring harness retainers.
    GFD271189Courtesy of FORD MOTOR COMPANY

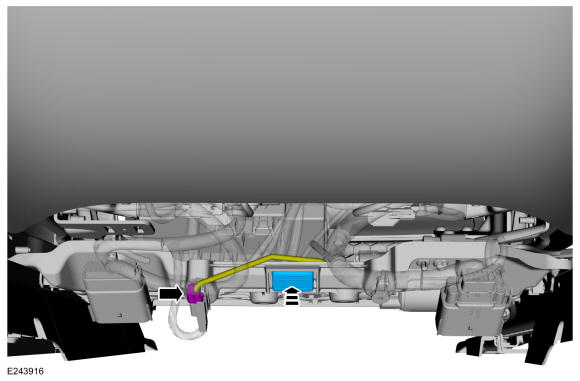

  12. Install the lamp and connect the electrical connector.
    GFD275179Courtesy of FORD MOTOR COMPANY
  13. NOTE: Seat components are removed for clarity.

    Connect the electrical connectors and attach the wiring harness retainers.

    GFD275166Courtesy of FORD MOTOR COMPANY
  14. Connect the seat position sensor electrical connector and detach the wiring harness retainer.
    GFD275165Courtesy of FORD MOTOR COMPANY
  15. If equipped with video display. Attach and connect the video display electrical connectors.
    GFD275164Courtesy of FORD MOTOR COMPANY
  16. Connect the front seat harness electrical connector(s).

    1. Attach the wiring harness pin-type retainer(s).
    2. Connect the electrical connector(s).

    GFD275097Courtesy of FORD MOTOR COMPANY
  17. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .

    Seats with memory

  18. Operate the front seat track horizontal motor in both directions through the full range of travel to set soft stops and avoid a premature stopping point occurrence after the vehicle is returned to the customer.
