Front Seat Power Lumbar Assembly - Vehicles With: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the SCMG. Refer to: Driver Multi-Contour Seat Module [SCMG] .
  2. Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .
    1. Lift the backrest adjuster to access the retainer.
    2. Detach the front seat power lumbar assembly from the retainer.

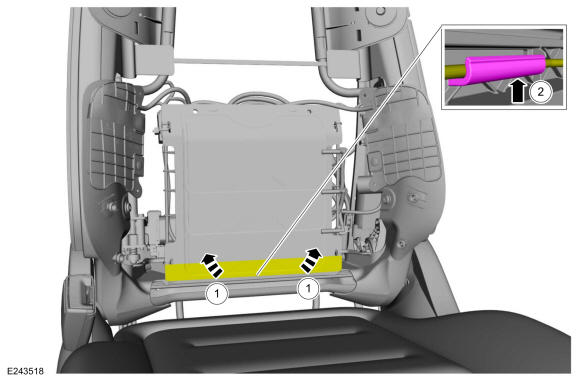

    GFD275160Courtesy of FORD MOTOR COMPANY
    1. Disconnect the front seat power lumbar assembly electrical connector.
    2. Detach the front seat cushion adjuster hose assembly retainer.
    3. Detach the front seat backrest heater mat electrical connector.
    4. Detach the front seat backrest blower motor electrical connector.

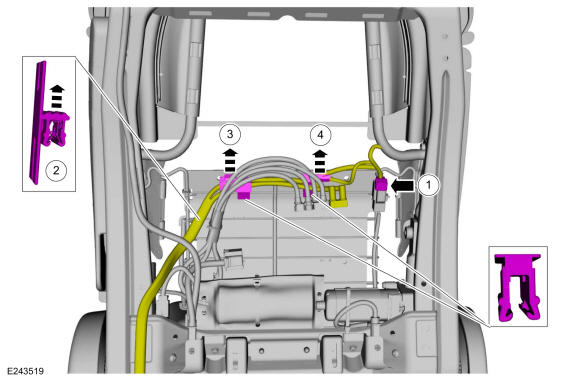

    GFD275161Courtesy of FORD MOTOR COMPANY
  5. Detach the J-hooks and remove front seat power lumbar assembly.

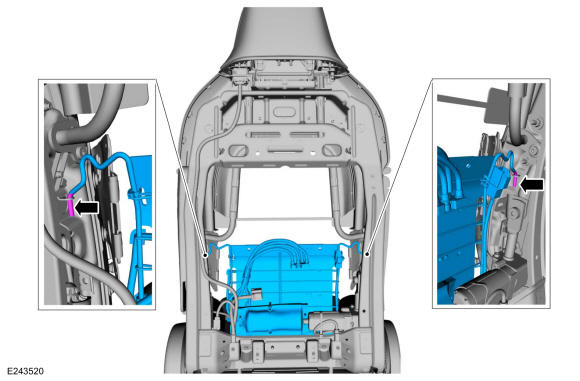

GFD275162Courtesy of FORD MOTOR COMPANY
