Front Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Passenger seat

  1. Remove the OCS. Refer to: Occupant Classification System (OCS) Sensor .

    Driver seat

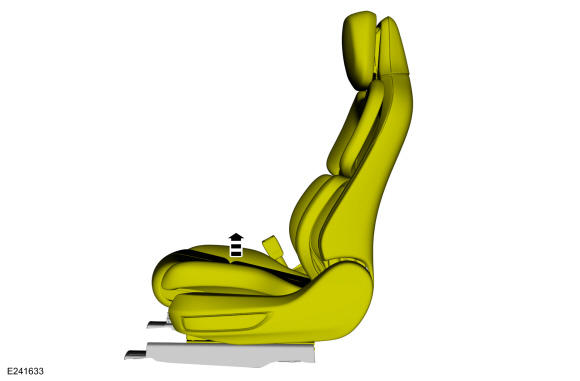

  2. NOTE: Seat with power head restraint shown, seat without power head restraint similar.

    Raise the seat to the full up position.

    GFD275133Courtesy of FORD MOTOR COMPANY

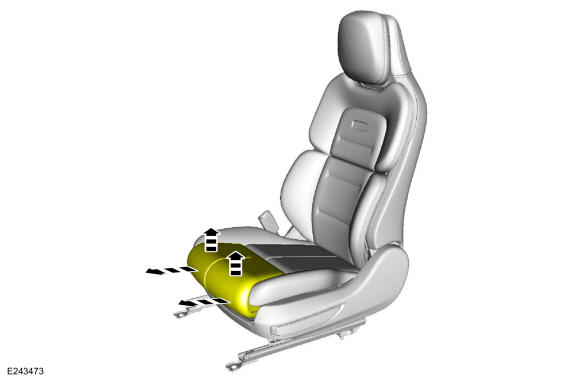

  3. If equipped with a power head restraint.Raise and extend the leg extensions to ease retainer access.
    GFD275134Courtesy of FORD MOTOR COMPANY
  4. Remove the front seat. Refer to: Front Seat .
  5. Release the back panel straps from the seat track.
    GFD275078Courtesy of FORD MOTOR COMPANY

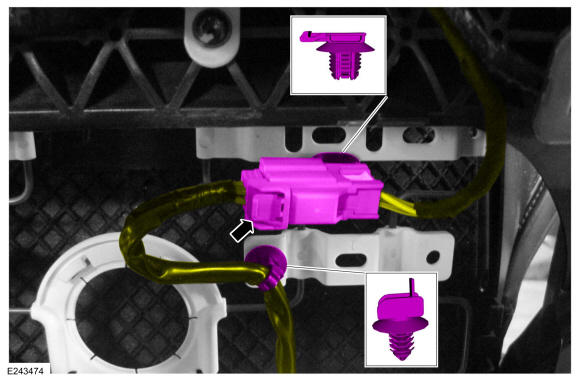

  6. Detach the wiring harness retainers and disconnect the cushion heater mat electrical connector.
    GFD275135Courtesy of FORD MOTOR COMPANY
  7. If equipped. Remove the video display. Refer to: Video Display .

    Driver seat with power head restraint

  8. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

    Raise and partially separate the head restraint rear cover enough to disengage the clips from the back panel. Use the General Equipment: Interior Trim Remover.

    GFD275079Courtesy of FORD MOTOR COMPANY
  9. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

    On both sides, grasp the back panel where it meets the module trim, pull to release the clips and separate the back panel from the module trim.

    GFD275080Courtesy of FORD MOTOR COMPANY
  10. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

    On both sides, using the interior trim remover, place it in between the plastic substrate and the clip, pry and detach the module clips from the back panel windows. Use the General Equipment: Interior Trim Remover.

  11. Pull out at the bottom, release the clips and detach the back panel from the backrest frame.
    GFD275082Courtesy of FORD MOTOR COMPANY
  12. Pull out at the sides of the back panel.
    GFD275083Courtesy of FORD MOTOR COMPANY
  13. Pull down and out and remove the back panel.
    GFD275084Courtesy of FORD MOTOR COMPANY

    Driver seat without power head restraint

  14. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

    On both sides, grasp the back panel where it meets the module trim, pull to release the clips and separate the back panel from the module trim.

    GFD275090Courtesy of FORD MOTOR COMPANY
  15. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

    On both sides, using the interior trim remover, place it in between the plastic substrate and the clip, pry and detach the module clips from the back panel windows. Use the General Equipment: Interior Trim Remover

    GFD275091Courtesy of FORD MOTOR COMPANY
  16. Pull out at the bottom, release the clips and detach the back panel from the backrest frame.
    GFD275092Courtesy of FORD MOTOR COMPANY
  17. Pull out at the sides of the back panel.
    GFD275093Courtesy of FORD MOTOR COMPANY
  18. Pull down and out and remove the back panel.
    GFD275094Courtesy of FORD MOTOR COMPANY

    All seats

  19. NOTE: After disconnecting the hose and lock assemblies, verify the black O-ring and white spacer remains with each hose.
    NOTE: When connecting the hose and lock assemblies, an audible click must be heard for correct installation.

    If equipped with multi-contoured seats. Release the locking tab and disconnect the hose and lock assembly from the SCMG and route the hose assembly out from the backrest.

    GFD275136Courtesy of FORD MOTOR COMPANY

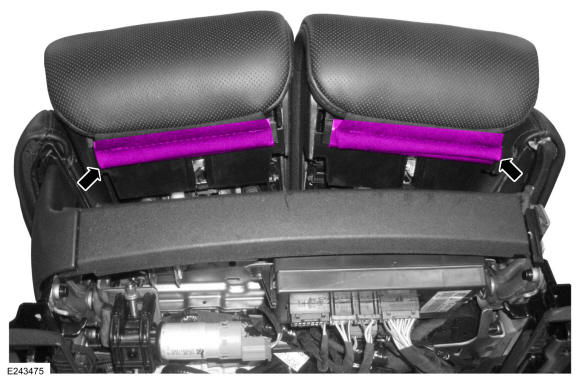

  20. Detach the cushion cover J-clips from the seat cushion extensions.
    GFD275137Courtesy of FORD MOTOR COMPANY

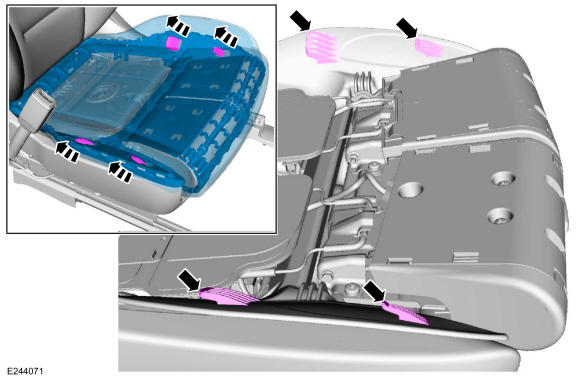

  21. At the attachment points, slide the seat cushion assembly rearward and upward, detaching the cushion assembly from the cushion module.
    GFD275138Courtesy of FORD MOTOR COMPANY

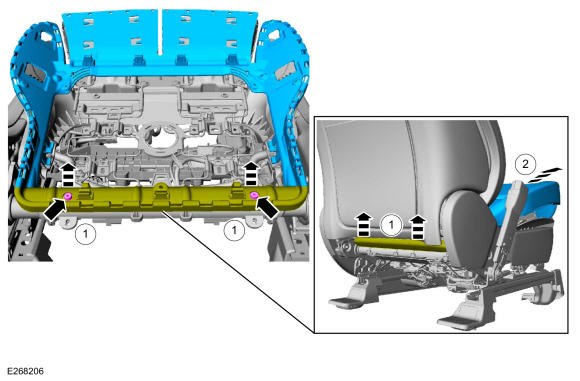

    1. NOTE: Only the carrier portion of the seat cushion is shown.

      Push the rear of the seat cushion up, disengaging the carrier from the locator pins.

    2. Pull the seat cushion and out from between the seat track and backrest.
    GFD275139Courtesy of FORD MOTOR COMPANY
  23. Route the cushion heater mat wiring harness pigtail out from between the seat cushion and backrest.
    GFD275140Courtesy of FORD MOTOR COMPANY

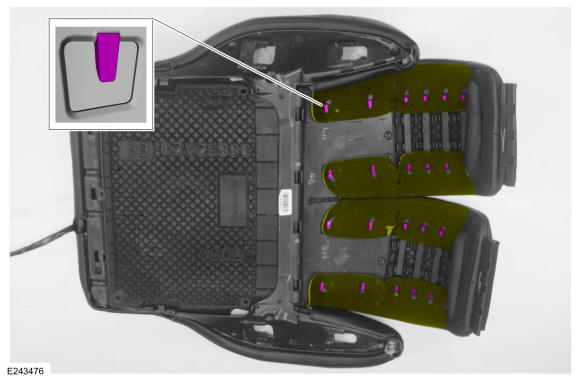

  24. NOTE: This step is only necessary when installing a new component.

    Release the front seat cushion cover from the retainers.

    GFD275141Courtesy of FORD MOTOR COMPANY

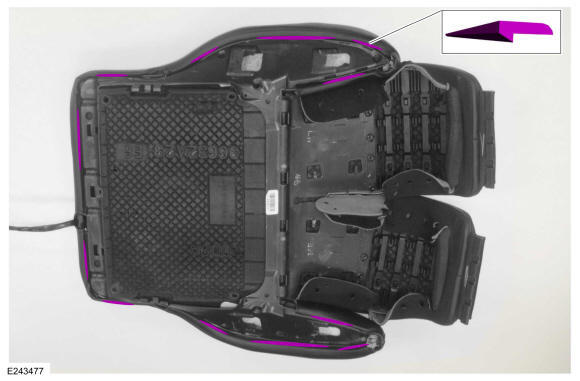

  25. NOTE: This step is only necessary when installing a new component.

    Release the front seat backrest cover tabs.

    GFD275142Courtesy of FORD MOTOR COMPANY

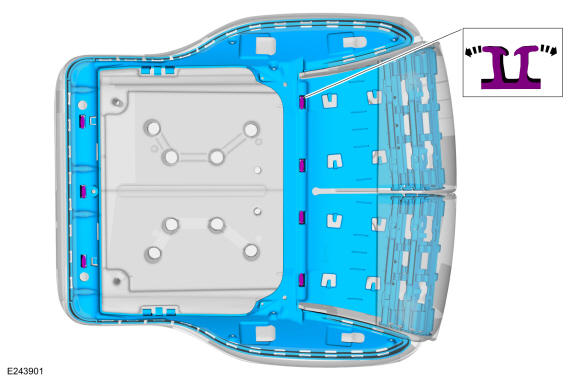

  26. NOTE: This step is only necessary when installing a new component.

    Release the hook-and-arrows and remove the front seat cushion cover carrier.

    GFD275143Courtesy of FORD MOTOR COMPANY

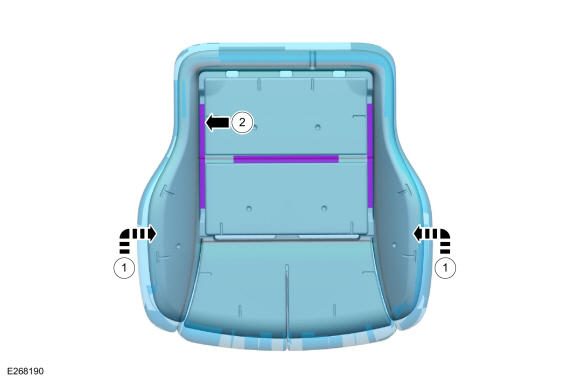

  27. NOTE: Use care when separating the seat cushion cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam.
    NOTE: This step is only necessary when installing a new component.
    NOTE: Base seat shown, Black Label/Presidential seat similar.

    Remove the front seat cushion cover.

    1. Invert the front seat cushion cover.
    2. Release the hook-and-loop strips.

GFD275144Courtesy of FORD MOTOR COMPANY
