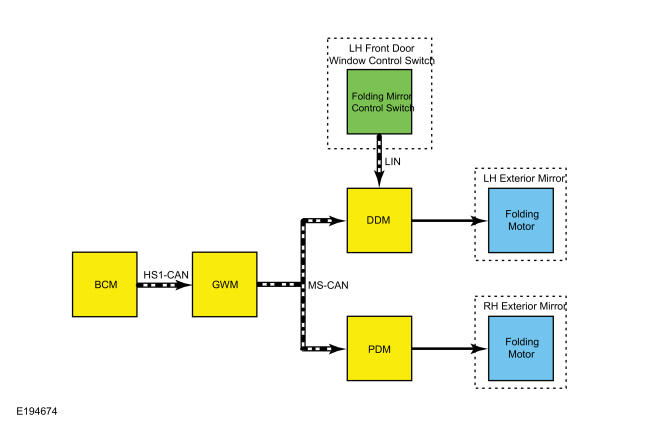

System Diagram - Exterior, Power Fold
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
BCM |
| 2 |
HS-CAN1 |
| 3 |
LIN |
| 4 |
MS-CAN |
| 5 |
GWM |
| 6 |
DDM |
| 7 |
Folding mirror control switch |
| 8 |
LH front door window control switch |
| 9 |
LH exterior mirror |
| 10 |
Folding motor |
| 11 |
PDM |
| 12 |
RH exterior mirror |
| 13 |
Folding motor |
