Running Board: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
LH side shown, RH side similar.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
-
NOTE: Short Wheel Base shown, Long Wheel Base similar.

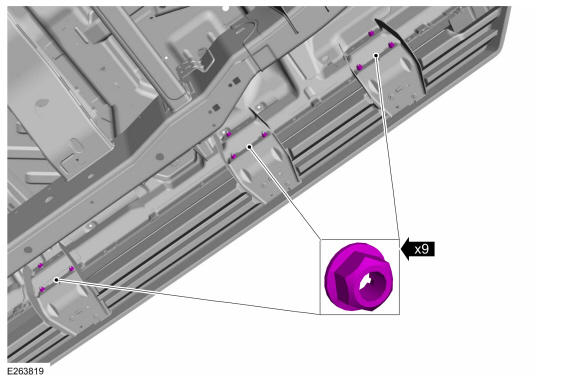

Remove the nuts from the attachment brackets.
Torque: 133 lb.in (15 Nm)

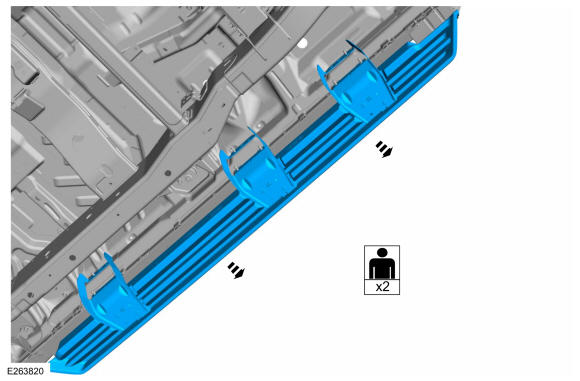

- Remove the running board assembly.
