Rear Fender Splash Shield: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the LH side rear wheel. Refer to: Wheel and Tire .

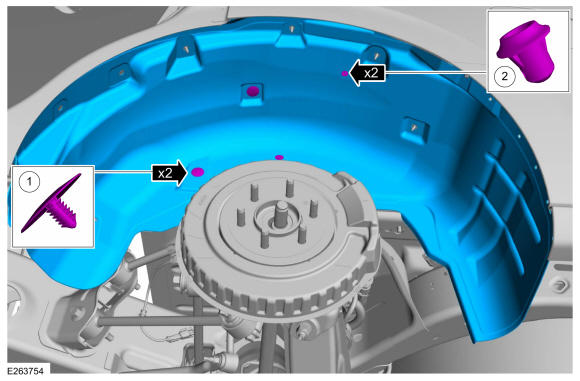

Remove the blind rivets.

Courtesy of FORD MOTOR COMPANY

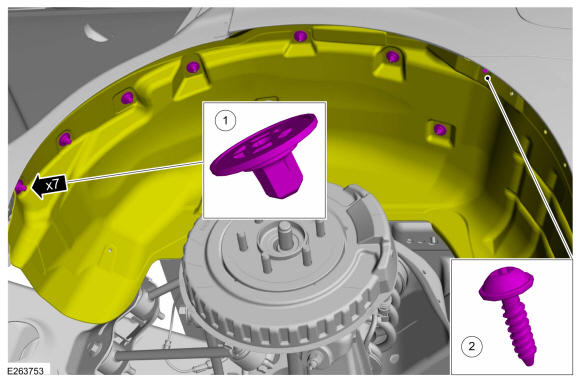

1. Remove the nuts.
  Torque: 28 lb.in (3.2 Nm)
2. Remove the screw.
  Torque: 13 lb.in (1.5 Nm)
Courtesy of FORD MOTOR COMPANY

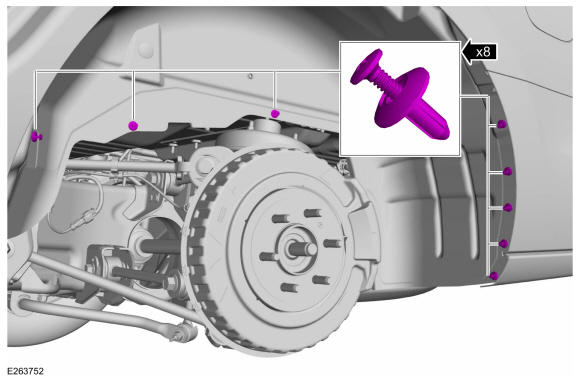

Remove the rear fender splash shield.
1. Remove the pin-type retainers.
2. Remove the grommets and the rear fender splash shield.

Courtesy of FORD MOTOR COMPANY
