Power Running Board (PRB): Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
-
NOTE: LH side shown, RH side similar.

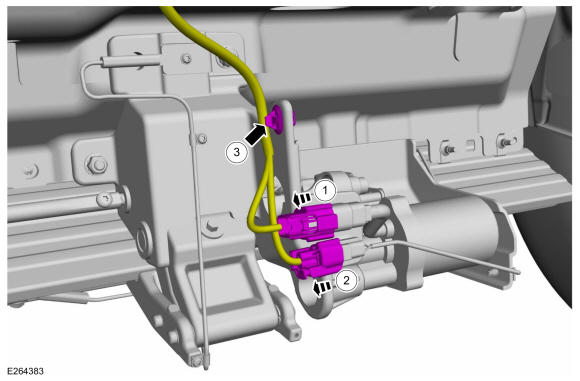

- Disconnect the PRB motor electrical connector.
- Disconnect the PRB lamp electrical connector.
- Detach the retainer and position aside the harness.

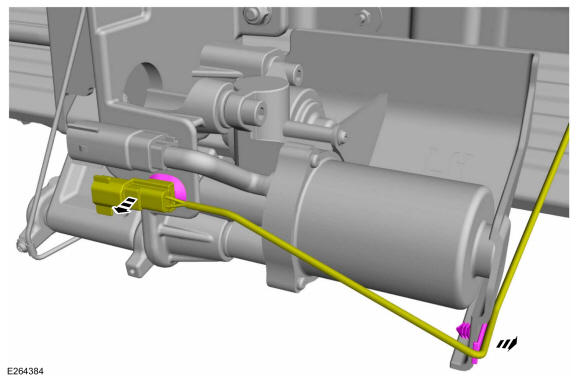

- Disconnect the PRB lamp harness retainers and position aside the harness.
Torque: 133 lb.in (15 Nm)

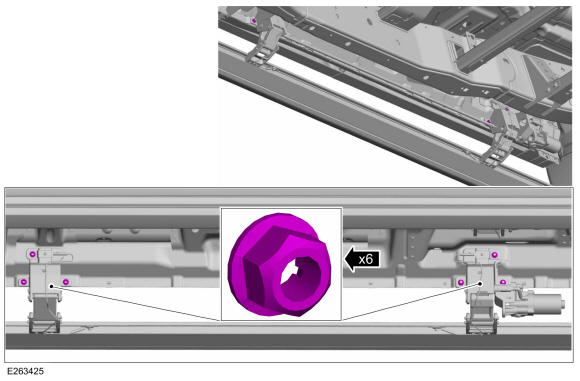

- Remove the nuts from the attachment brackets.
Torque: 133 lb.in (15 Nm)

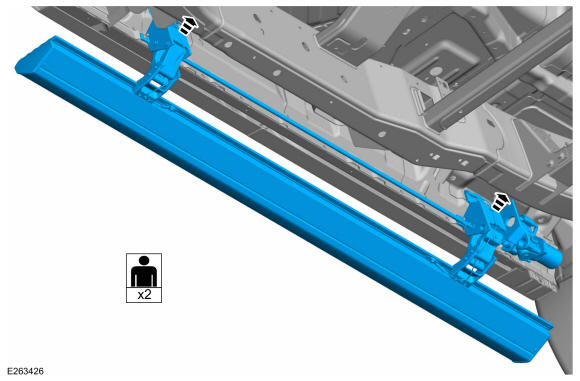

- Remove the power running board assembly.
