Power Running Board (PRB) Hinge: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
NOTE: LH side shown, RH side similar.

NOTE: Support the running board with a jackstand.
1. Disconnect the electrical connection.
  Torque: 133 lb.in (15 Nm)
2. Remove the running board mounting screws.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

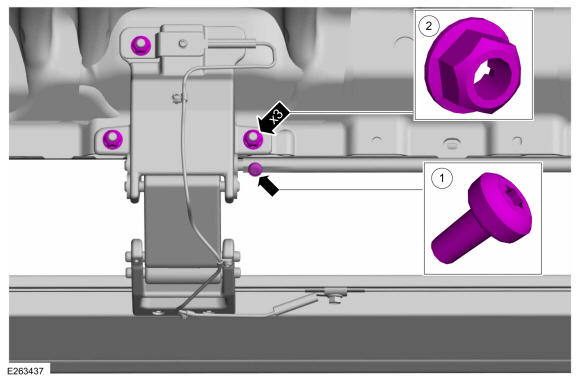

1. Remove the torque rod mounting screw.
  Torque: 133 lb.in (15 Nm)
2. Remove the hinge mounting nuts.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

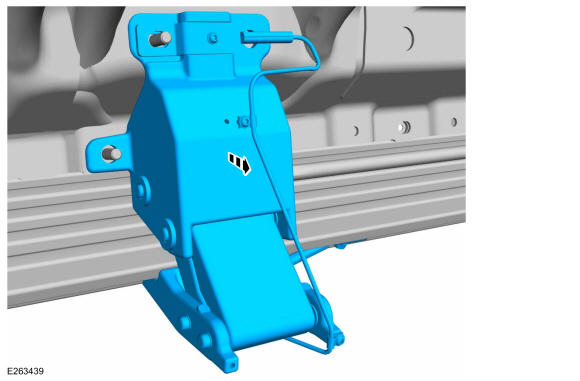

Disengage the torque rod and remove the bracket assembly.

Courtesy of FORD MOTOR COMPANY
