Power Running Board (PRB) Connecting Rod: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH similar.
- Remove the rear running board bracket. Refer to: Power Running Board (PRB) Hinge .

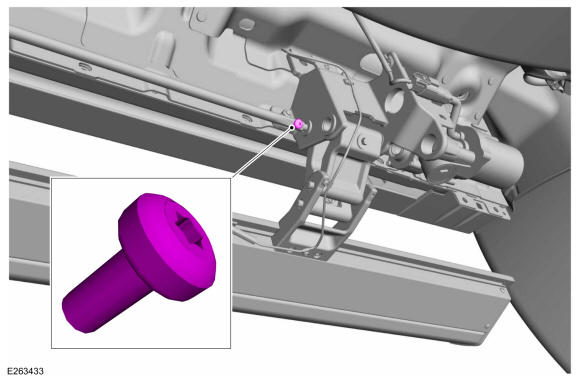

- Remove the screw.
Torque: 133 lb.in (15 Nm)

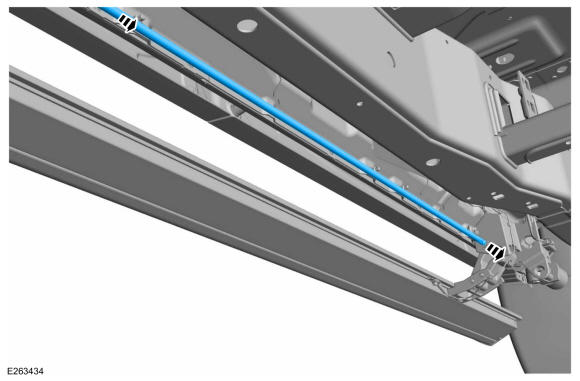

- Remove the connecting rod.
