D-Pillar Moulding: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LWB (long wheel base) shown, SWB (short wheel base) similar.

NOTE: RH side shown, LH side similar.

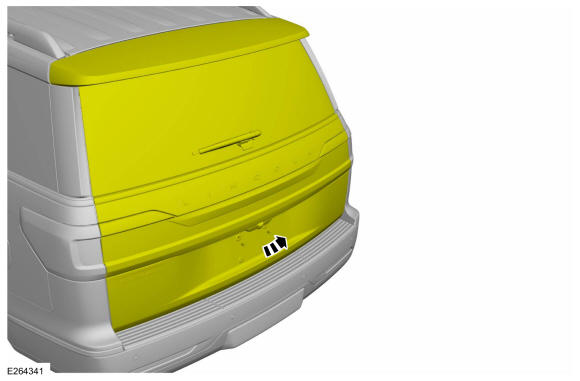

Open the liftgate.

Courtesy of FORD MOTOR COMPANY

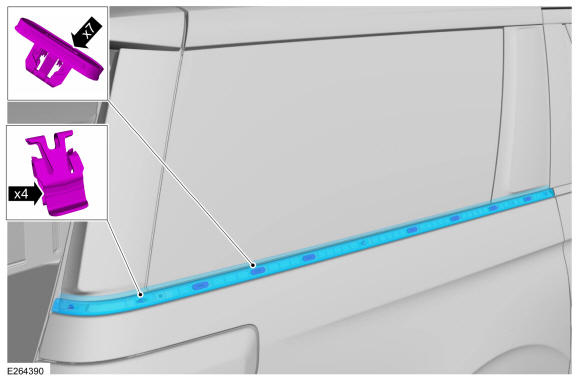

Using a non-marring trim tool, detach the push pin retainers and remove the bodyside moulding.

Courtesy of FORD MOTOR COMPANY
Remove the bodyside fixed glass. Refer to: REMOVAL AND INSTALLATION .

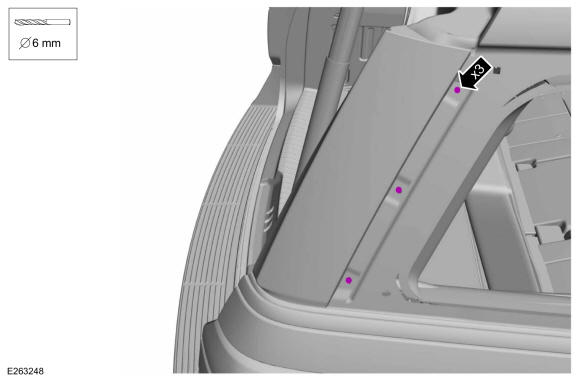

Remove the D-Pillar moulding blind rivets. Use the General Equipment: 6 mm Drill Bit

Courtesy of FORD MOTOR COMPANY

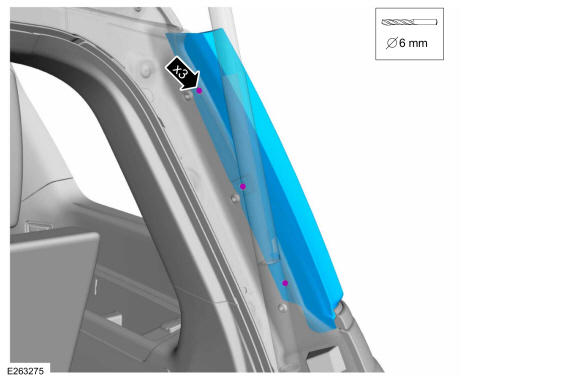

Remove the blind rivets and remove the D-pillar moulding. Use the General Equipment: 6 mm Drill Bit

Courtesy of FORD MOTOR COMPANY
