Bodyside Moulding: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LWB (long wheel base) shown, SWB (short wheel base) similar.

NOTE: RH side views shown, LH side similar.

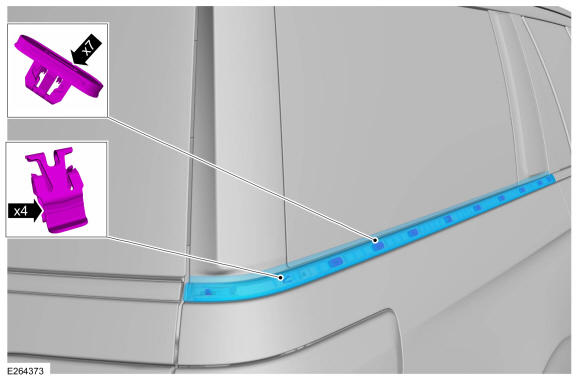

Using a non-marring trim tool, detach the push pin retainers and remove the bodyside moulding.

Courtesy of FORD MOTOR COMPANY
Using a non-marring trim tool, detach the push pin retainers and remove the bodyside quarter panel moulding.

Courtesy of FORD MOTOR COMPANY
