Removal And Installation: Headliner: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following items:

    1. On both sides. Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
    2. On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
    3. On both sides. Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
    4. On both sides. Remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel - Short Wheelbase . Refer to: D-Pillar Trim Panel - Long Wheelbase .
    5. On RH side. Remove the front seat. Refer to: Front Seat .
    6. Remove the glove compartment. Refer to: Glove Compartment .

  2. Position the headliner wiring harness aside.

    1. Disconnect the headliner wiring harness.
    2. Release the headliner wiring harness clips.

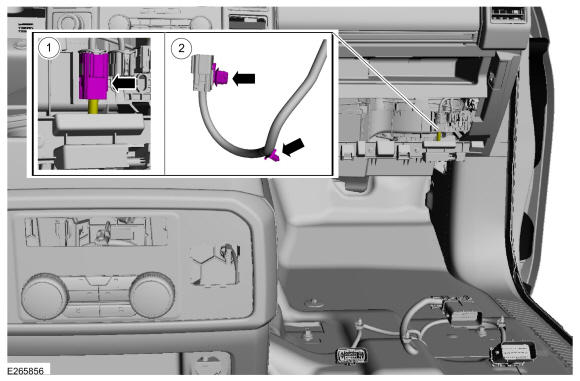

    GFD274917Courtesy of FORD MOTOR COMPANY
  3. On LH side. Position the headliner wiring harness aside.

    1. Disconnect headliner wiring harness electrical connector.
    2. Release the headliner wiring harness retainers.

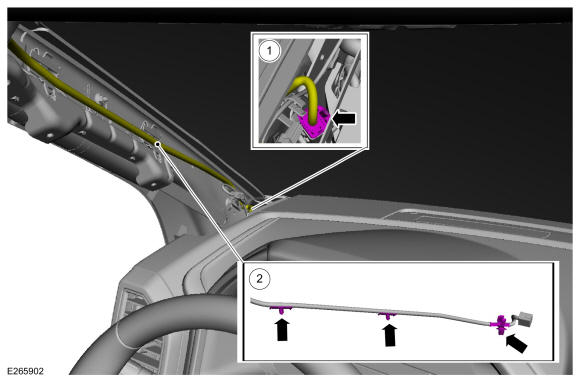

    GFD274918Courtesy of FORD MOTOR COMPANY
  4. On RH side. Position the headliner wiring harness aside.

    1. Disconnect the headliner wiring harness electrical connector.
    2. Release the headliner wiring harness retainers.
    3. Feed the headliner wiring harness up past the instrument panel.

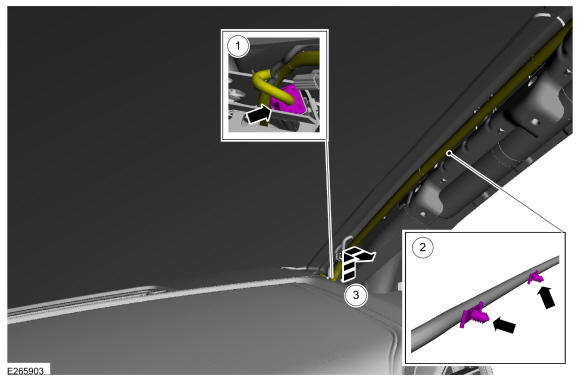

    GFD274919Courtesy of FORD MOTOR COMPANY

    Vehicles with image processing module

  5. Release the clips and remove the IPMA cover.
    GFD274720Courtesy of FORD MOTOR COMPANY
  6. Disconnect the IPMA and the rain sensor wiring harness electrical connectors.
    GFD274920Courtesy of FORD MOTOR COMPANY

    All vehicles

  7. If equipped. Disconnect the rear view mirror electrical connector.
    GFD274921Courtesy of FORD MOTOR COMPANY
  8. If equipped. Release the clips and remove the rain sensor outer covers.
    GFD274922Courtesy of FORD MOTOR COMPANY
  9. If equipped. Disconnect the rain sensor electrical connectors.
    GFD274923Courtesy of FORD MOTOR COMPANY
  10. NOTE: RH shown, LH similar.

    On both sides. Remove the sun visor.

    1. Remove the bolt cover.
    2. Remove the bolt.
    3. Remove the sun visor.
    4. Disconnect the sun visor electrical connector.

    GFD274924Courtesy of FORD MOTOR COMPANY
  11. NOTE: RH shown, LH similar.

    On both sides. Remove the bolt and the sun visor clip.

    GFD274925Courtesy of FORD MOTOR COMPANY
  12. On RH side. Remove the front passenger assist handle.

    1. Position the front passenger assist handle down.
    2. Remove the bolt covers.
    3. Remove the bolts.

    GFD274926Courtesy of FORD MOTOR COMPANY
  13. NOTE: RH shown, LH similar.

    On both sides. Remove the rear passenger assist handle.

    1. Position the rear passenger assist handle down.
    2. Remove the bolt covers.
    3. Remove the bolts.

    GFD274927Courtesy of FORD MOTOR COMPANY
  14. NOTE: RH shown, LH similar.

    On both sides. Remove the rear coat hook.

    1. Position the rear coat hook down.
    2. Remove the bolt.

    GFD274928Courtesy of FORD MOTOR COMPANY

    Long wheel base

  15. NOTE: LH shown, RH similar.

    On both sides. Remove the third row outer seatbelt retractor D-ring bolt cover.

    GFD274929Courtesy of FORD MOTOR COMPANY
  16. NOTE: LH shown, RH similar.

    On both sides. Remove the third row outer seatbelt retractor D-ring bolt.

    Torque: 30 lb.ft (40 Nm)

    GFD274930Courtesy of FORD MOTOR COMPANY
  17. NOTE: LH shown, RH similar.

    On both sides. Remove the pin-type retainer and the third row outer seatbelt retractor bracket cover. Use the General Equipment: Interior Trim Remover.

    GFD274931Courtesy of FORD MOTOR COMPANY
  18. Disconnect the third row center seatbelt retractor from the third row center seatbelt retractor mini-buckle.

    1. Press the release button. Use the General Equipment: Flat-Bladed Screwdriver
    2. Release the third row center seatbelt retractor.

    GFD274900Courtesy of FORD MOTOR COMPANY
  19. Remove the third row center seatbelt retractor cover.

    1. Release the clips. Use the General Equipment: Interior Trim Remover
    2. Slide cover forward and down to release the rear tab.
    3. Feed the third row center seatbelt through.

    GFD274932Courtesy of FORD MOTOR COMPANY

    All vehicles

  20. On both sides. Position the second row seat backrest in the full flat position.

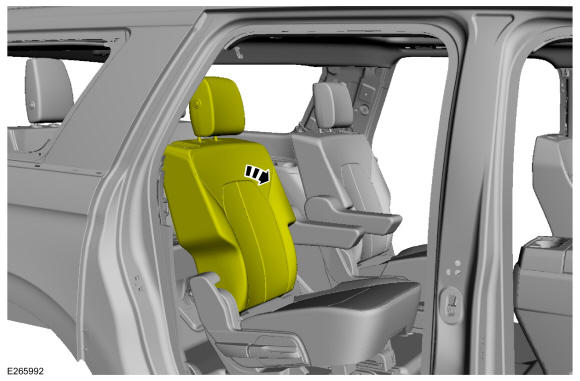

    GFD274933Courtesy of FORD MOTOR COMPANY
  21. On both sides. Position the third row seat backrest in the full flat position.

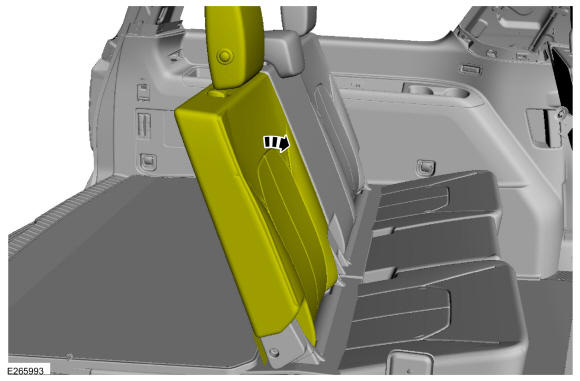

    GFD274934Courtesy of FORD MOTOR COMPANY
  22. NOTE: Long wheel base with roof opening panel shown, all others similar.

    Release the magnets and lower the headliner.

    GFD274935Courtesy of FORD MOTOR COMPANY
  23. Remove the headliner.

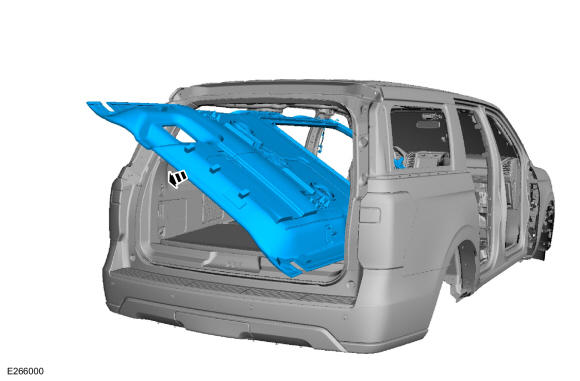

GFD274936Courtesy of FORD MOTOR COMPANY
