Liftgate Anti-Pinch Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH side shown, RH side similar.
  1. Remove the liftgate trim panel. Refer to: Loadspace Trim Panel .

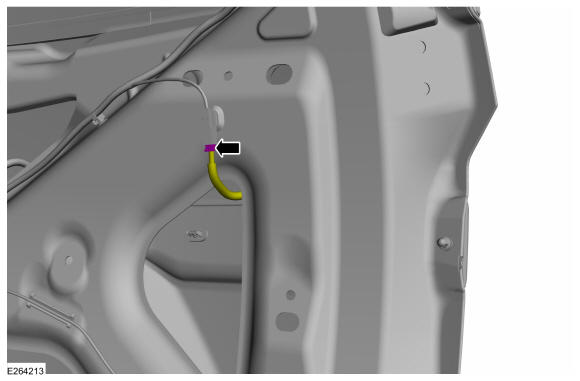

  2. Disconnect the electrical connector.
    GFD274847Courtesy of FORD MOTOR COMPANY

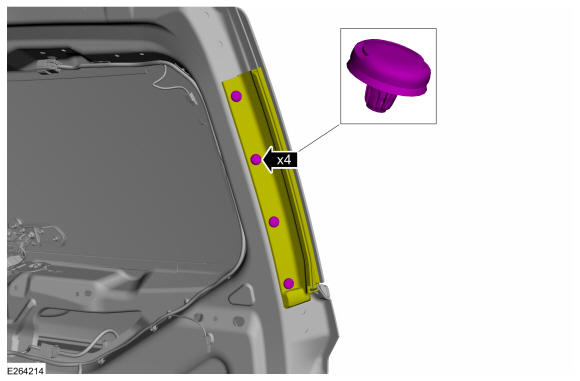

  3. Remove the retainers.
    GFD274848Courtesy of FORD MOTOR COMPANY

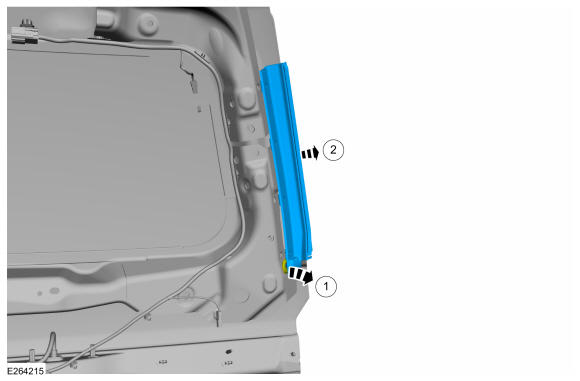

    1. Remove the rubber grommet and route the electrical connector through the liftgate.
    2. Remove the liftgate anti-pinch switch.
GFD274849Courtesy of FORD MOTOR COMPANY
