Hands-Free Liftgate Actuation Upper Sensor: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear bumper cover. Refer to: Rear Bumper Cover .
- Remove the push pins, release the locating tabs and remove the liftgate module cover.

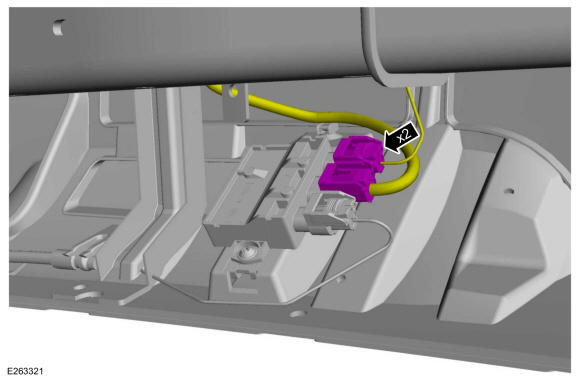

- Disconnect the electrical connectors.

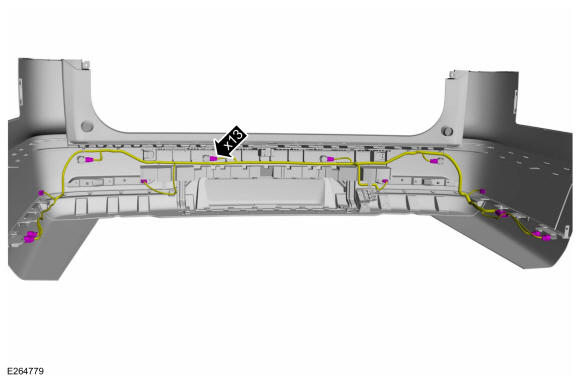

- Disconnect the rear bumper cover wiring harness electrical connectors from rear bumper cover.

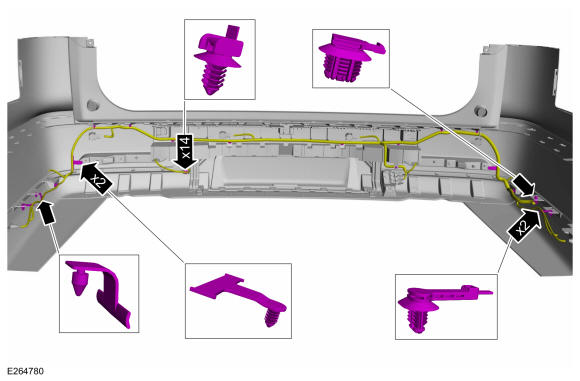

- Detach the wiring harness retainers from the rear bumper cover and separate the harness guides.

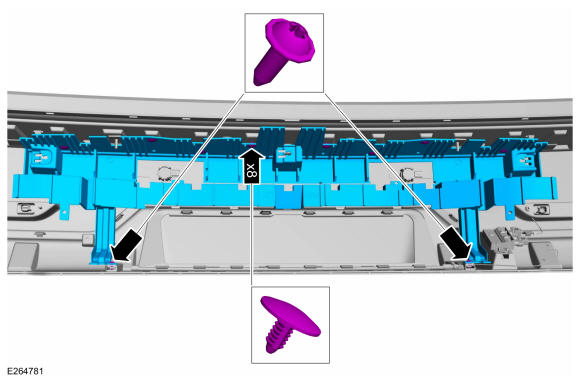

- Remove the screws, push pins and the rear bumper cover reinforcement.

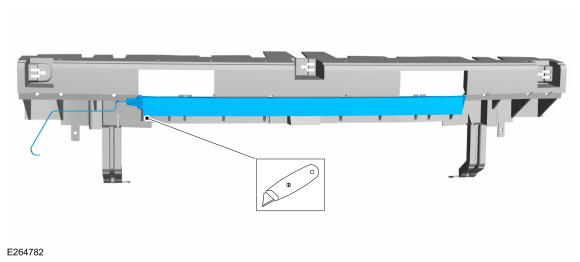

- Cut the foam and separate the hands free liftgate actuation upper sensor.
