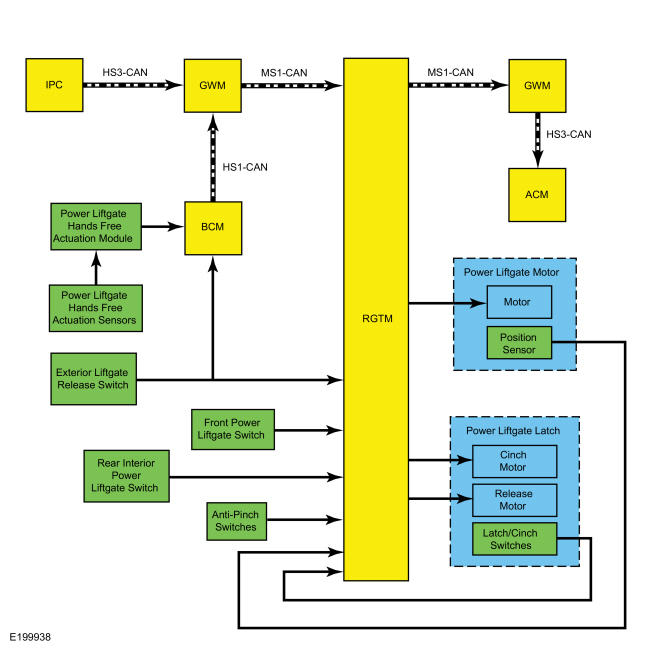

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | RGTM |
| 2 | Front Power Liftgate Switch |
| 3 | Exterior Liftgate Release Switch |
| 4 | Anti-Pinch Switches |
| 5 | BCM |
| 6 | Left/Right Power Liftgate Motors |
| 7 | Power Liftgate Latch |
| 8 | Cinch Motor |
| 9 | Latch/Cinch Switches |
| 10 | Power Liftgate Hands-Free Actuation Module |
| 11 | Power Liftgate Hands-Free Actuation Sensors |
| 12 | Rear Interior Power Liftgate Switch |
| 13 | GWM |
| 14 | IPC |
| 15 | GWM |
| 16 | ACM |
| 17 | Release Motor |
| 18 | Motor |
| 19 | Position Sensor |
