Section 1120 (Side And Rear Vision System)
>>
Description And Operation
>>
Blind Spot Information System - Component Location
>>

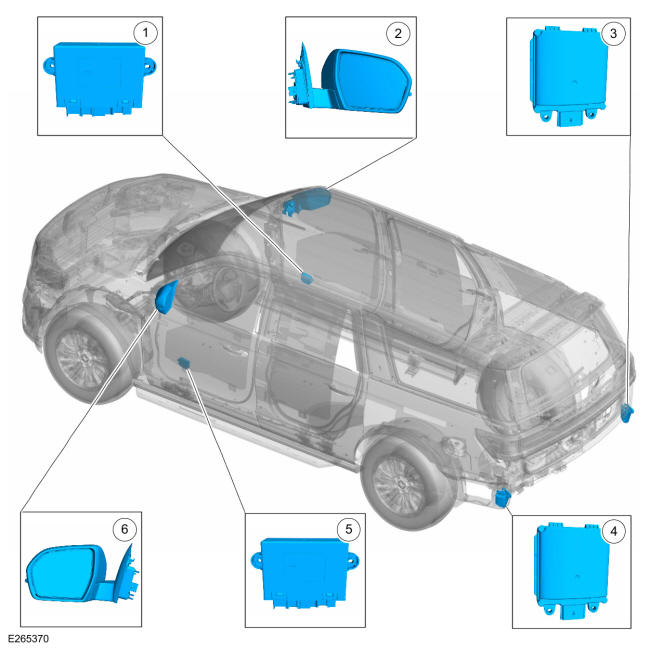

Component Location - Blind Spot Monitoring System (BLIS®)
Component Location - Blind Spot Monitoring System (BLIS®)
WARNING:
This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
PDM
2
RH Exterior Mirror
3
SODR
4
SODL
5
DDM
6
LH Exterior Mirror
