V-Belt TENSIONER Assembly And Idler Pulley

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the V-belts. < refer to V-BELT , REMOVAL, V-belt >
  2. Remove the cap from V-belt tensioner assembly.

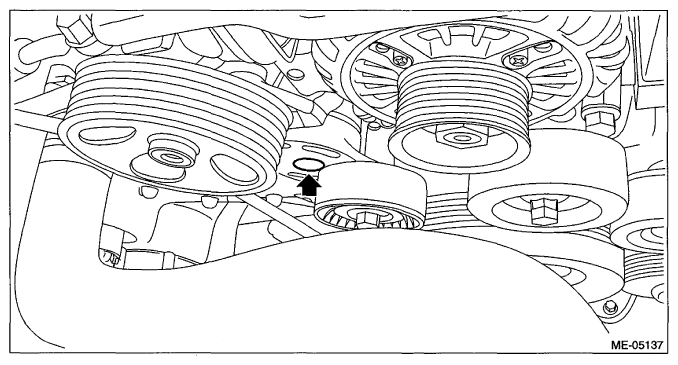

    Fig 1: Locating V-Belt Tensioner Assembly Cap
    G07669305Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt securing the V-belt tensioner assembly to the power steering pump bracket, and remove the V-belt tensioner assembly.

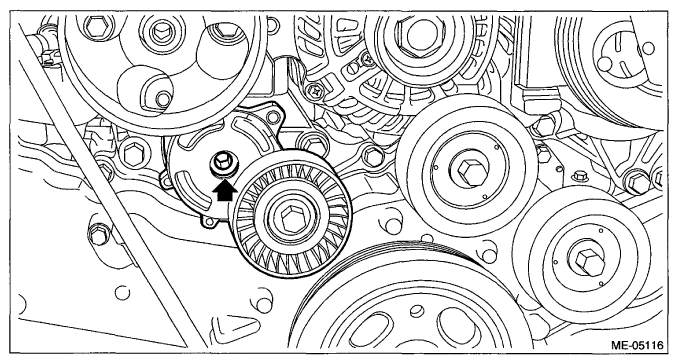

    Fig 2: Locating V-Belt Tensioner Assembly Bolt
    G07669306Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which secure the idler pulley to the chain cover, and remove the idler pulley.

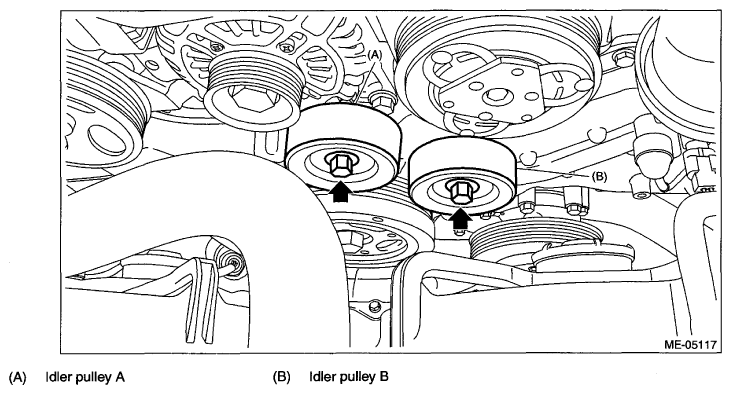

    Fig 3: Locating Chain Cover Idler Pulley Bolts
    G07669307Courtesy of SUBARU OF AMERICA, INC.
