V-Belt TENSIONER Assembly And Idler Pulley

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the idler pulley to the chain cover.
NOTE: When installing the idler pulley, be careful of the idler pulley cover direction.

Fig 1: Identifying Idler Pulley Cover And Protrusion
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 36 N.m (3.7 kgf-m, 26.6 ft-lb)

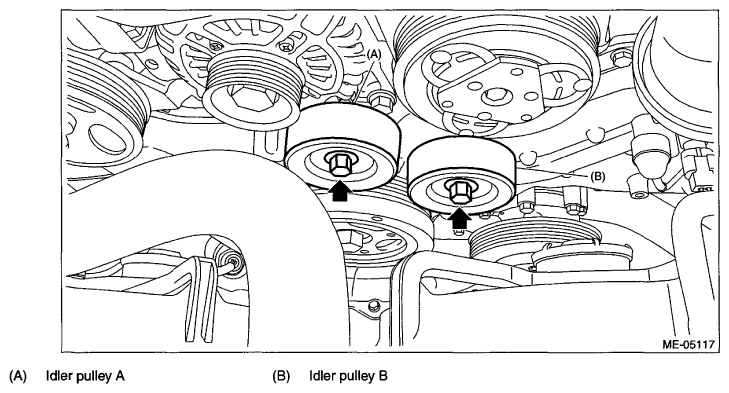

Fig 2: Locating Chain Cover Idler Pulley Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt tensioner assembly onto the power steering pump bracket.
NOTE: When installing the V-belt tensioner assembly, insert the protrusion of V-belt tensioner assembly into the hole at the power steering pump bracket to prevent rotating.

Fig 3: Identifying V-Belt Tensioner Assembly, Power Steering Pump Bracket And Protrusion Portion
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

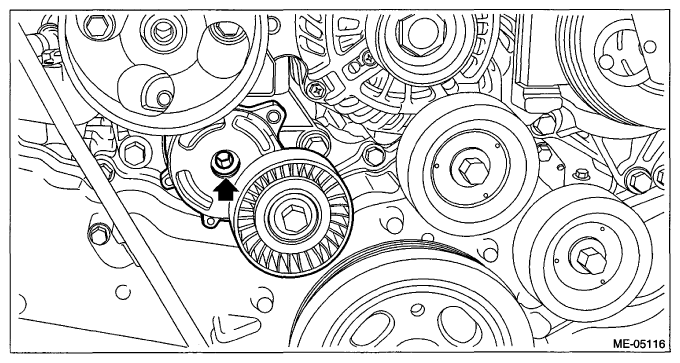

Fig 4: Locating V-Belt Tensioner Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the cap to the V-belt tensioner assembly.

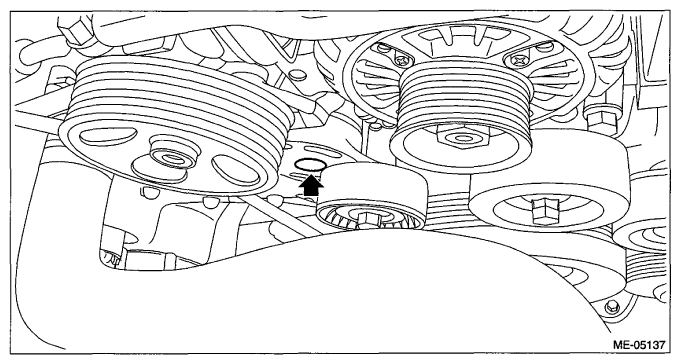

Fig 5: Locating V-Belt Tensioner Assembly Cap
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. < refer to V-BELT , INSTALLATION, V-belt >
