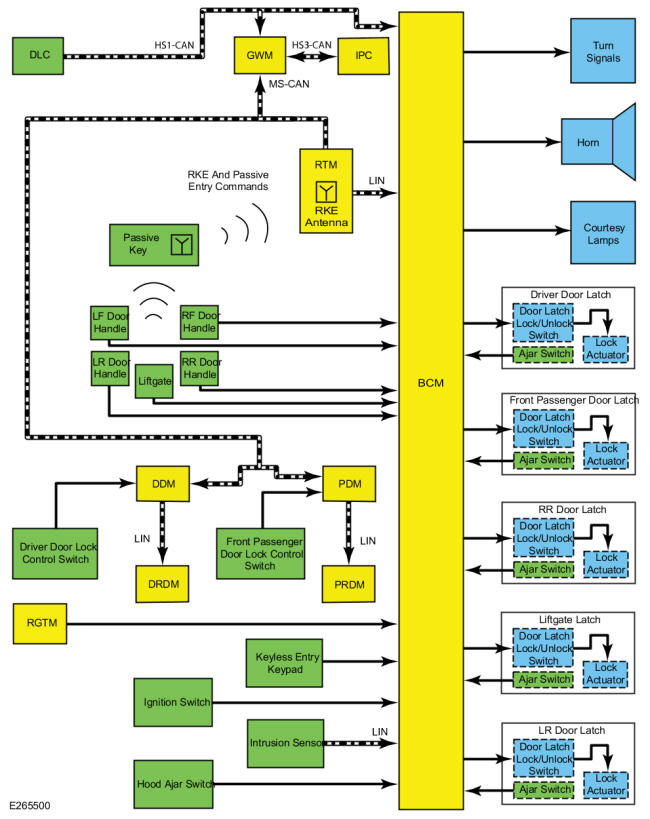

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | BCM |
| 2 | DDM |
| 3 | DRDM |
| 4 | GWM |
| 5 | DLC |
| 6 | IPC |
| 7 | PDM |
| 8 | PRDM |
| 9 | Front Passenger Door Lock Control Switch |
| 10 | RKE Antenna |
| 11 | Passive Key |
| 12 | RKE And Passive Entry Commands |
| 13 | Turn Signals |
| 14 | Horn |
| 15 | RHR Door Latch |
| 16 | Door Latch Lock/Unlock Switch |
| 17 | Lock Actuator |
| 18 | Ajar Switch |
| 19 | Liftgate Latch |
| 20 | Door Latch Lock/Unlock Switch |
| 21 | Lock Actuator |
| 22 | Ajar Switch |
| 23 | Front Passenger Door Latch |
| 24 | Door Latch Lock/Unlock Switch |
| 25 | Lock Actuator |
| 26 | Ajar Switch |
| 27 | LHR Door Latch |
| 28 | Door Latch Lock/Unlock Switch |
| 29 | Lock Actuator |
| 30 | Ajar Switch |
| 31 | Driver Door Latch |
| 32 | Door Latch Lock/Unlock Switch |
| 33 | Lock Actuator |
| 34 | Ajar Switch |
| 35 | Ignition Switch |
| 36 | Hood Ajar Switch |
| 37 | Driver Door Lock Control Switch |
| 38 | Courtesy Lamps |
| 39 | Intrusion Sensor |
| 40 | RGTM |
| 41 | RTM |
| 42 | LHR Door Handle |
| 43 | RHR Door Handle |
| 44 | Liftgate |
| 45 | LHF Door Handle |
| 46 | RHF Door Handle |
| 47 | Keyless Entry Keypad |
