Headlamp Assembly: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH headlamp assembly shown, RH similar.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

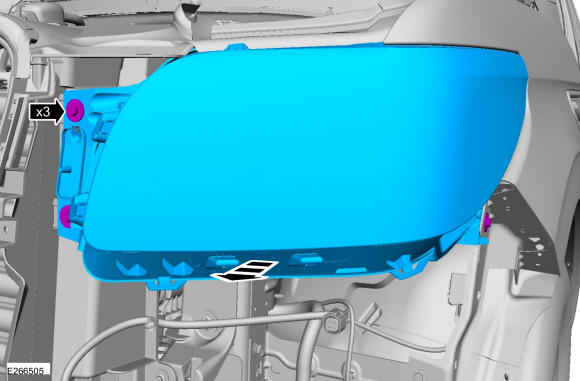

- Remove the bolts and the headlamp assembly.
Torque: 31 lb.in (3.5 Nm)

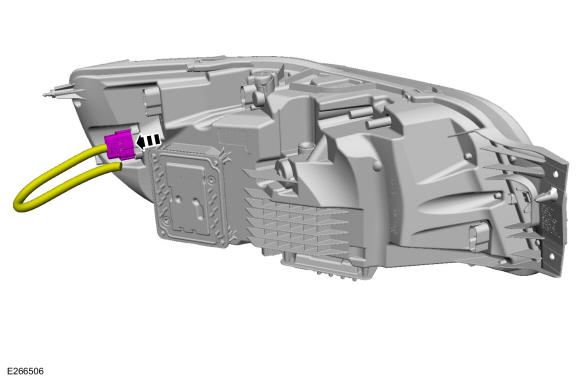

- Disconnect the electrical connector.
