Section 111 (Anti-Lock Brake System - Vehicle Dynamics Control (VDC) (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

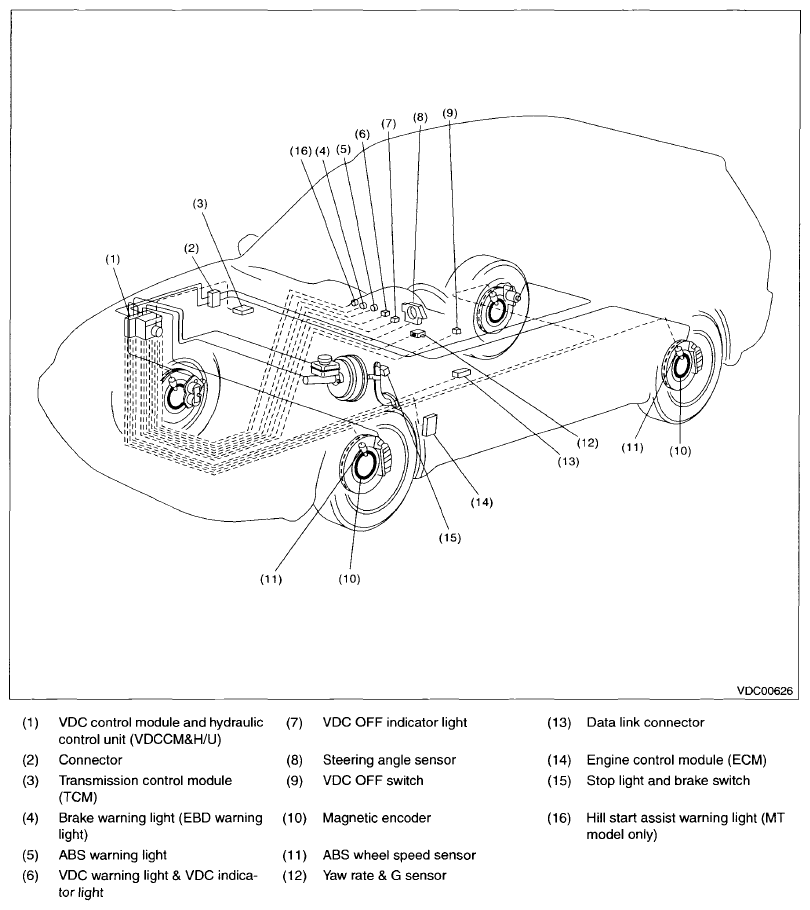

Fig 1: Vehicle Dynamics Control Components Location (1 Of 2)
G07666283Courtesy of SUBARU OF AMERICA, INC.

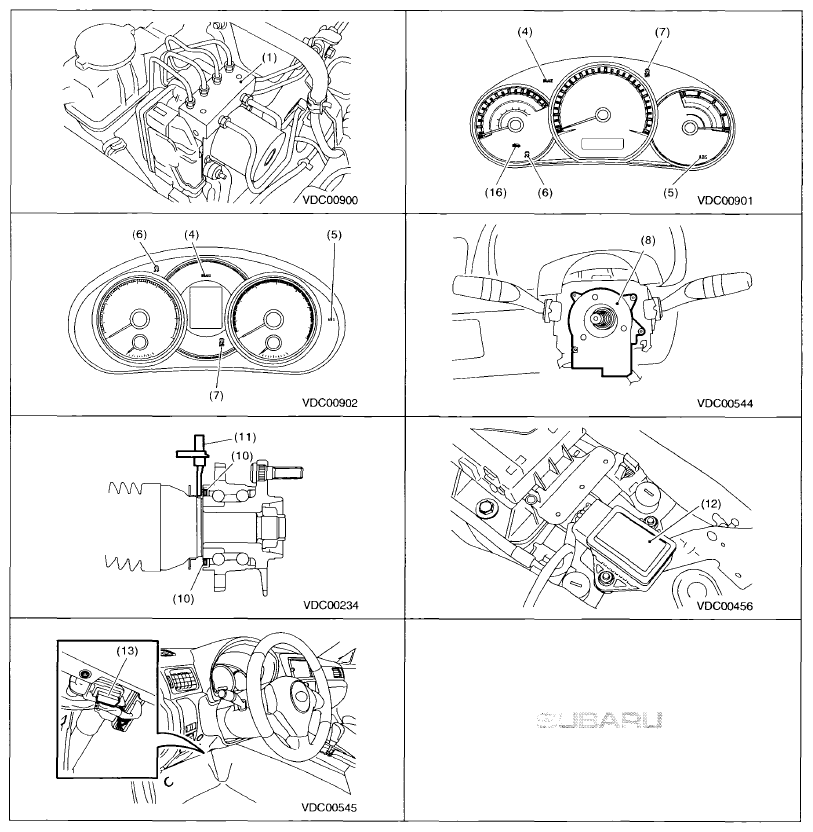

Fig 2: Vehicle Dynamics Control Components Location (2 Of 2)
G07666284Courtesy of SUBARU OF AMERICA, INC.
