DTC C0076 Clutch Signal: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

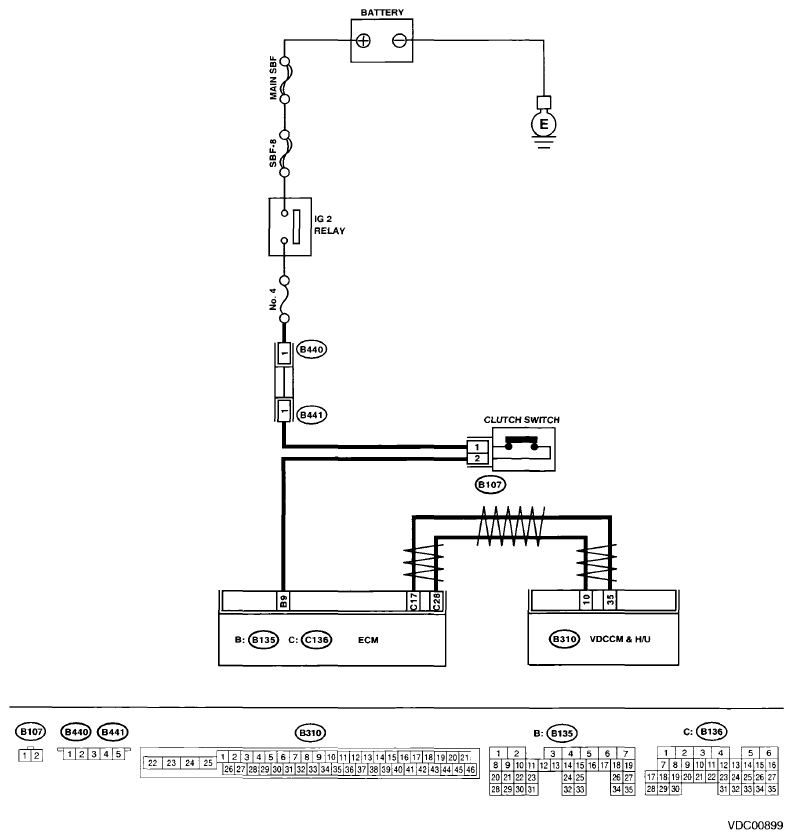

Fig 1: Clutch Signal Wiring Diagram
G07666316Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE CHART

Step Check Yes No
1 CHECK LAN SYSTEM.
Perform the diagnosis for LAN system. < Ref. to OPERATION , Read Diagnostic Trouble Code (DTC). >		 Is there any fault in LAN system? Perform the diagnosis according to DTC for LAN system. < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Go to step 2  .
2 CHECK CLUTCH SIGNAL USING SUBARU SELECT MONITOR.
  1. Select "Current Data Display & Save" on the Subaru Select Monitor.
  2. Read the indication of clutch switch signal.
 Is OFF displayed when the clutch pedal is not depressed, and is ON displayed when depressed? Go to step 5.  Go to step 3  .
3 CHECK CLUTCH SIGNAL OF ECM USING SUBARU SELECT MONITOR.
  1. Select {Current Data Display & Save} on Subaru Select Monitor.
  2. Read the indication of clutch switch signal.
 Is OFF displayed when the clutch pedal is not depressed, and is ON displayed when depressed? Go to step 5.  Go to step 4  .
4 CHECK HARNESS BETWEEN ECM AND CLUTCH SWITCH.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from ECM and clutch switch.
  3. Measure the resistance of harness between ECM and clutch switch connector.

    Connector & terminal

    (B136) No. 25 - (B107) No. 2:

 Is the resistance less than 1 Ω? Repair the power supply circuit of clutch switch. Or replace the clutch switch. < Ref. to CLUTCH SWITCH . > Repair the harness between ECM and clutch switch connector.
5 CHECK VDCCM&H/U.
  1. Connect all connectors.
  2. Clear the memory. < Ref. to CLEAR MEMORY MODE . >
  3. Perform the Inspection Mode. < Ref. to INSPECTION MODE . >
  4. Read the DTC.
 Is the same DTC displayed? Replace the VDCCM only. < Ref. to REPLACEMENT , VDC Control Module and Hydraulic Control Unit (VDCCM&amp;H/U). > Go to step 6  .
6 CHECK OTHER DTC DETECTION.  Is any other DTC displayed? Perform the diagnosis according to DTC. < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Temporary poor contact occurs.
