DTC C0071 Change Range Of Steering Angle Sensor Is Too Big: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

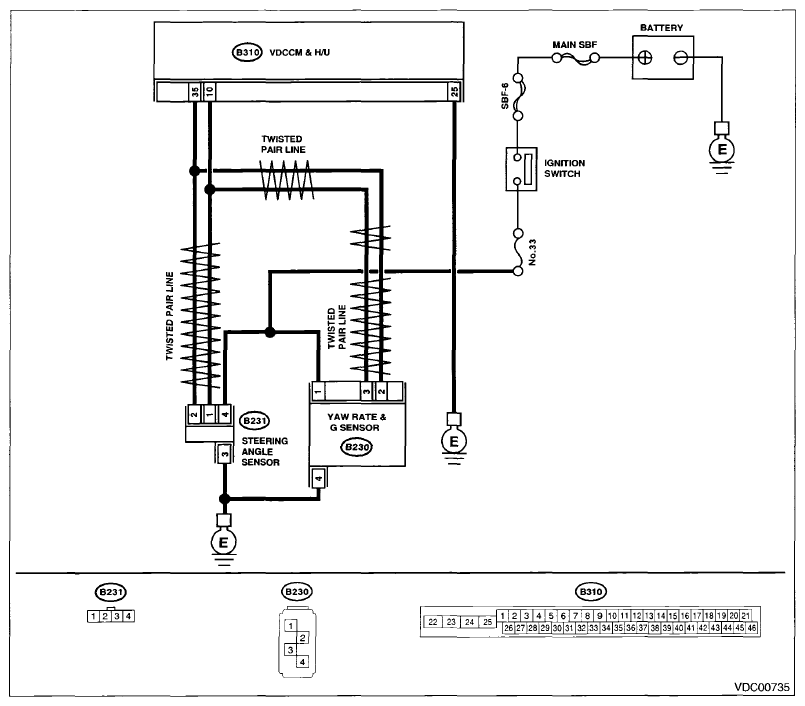

Fig 1: Steering Angle Sensor Wiring Diagram
G07666307Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE CHART

Step Check Yes No
1 CHECK VDCCM&H/U.
  1. Turn the ignition switch to OFF.
  2. Connect ail connectors.
  3. Clear the memory. < Ref. to CLEAR MEMORY MODE . >
  4. Perform the Inspection Mode. < Ref. to INSPECTION MODE . >
  5. Read the DTC.
 Is the same DTC displayed? Replace the VDCCM only. < Ref. to REPLACEMENT , VDC Control Module and Hydraulic Control Unit (VDCCM&amp;H/U). > Go to step 2  .
2 CHECK OTHER DTC DETECTION.  Is any other DTC displayed? Perform the diagnosis according to DTC. < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Temporary poor contact occurs.
