DTC C0052 Motor And Motor Relay Off Failure: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

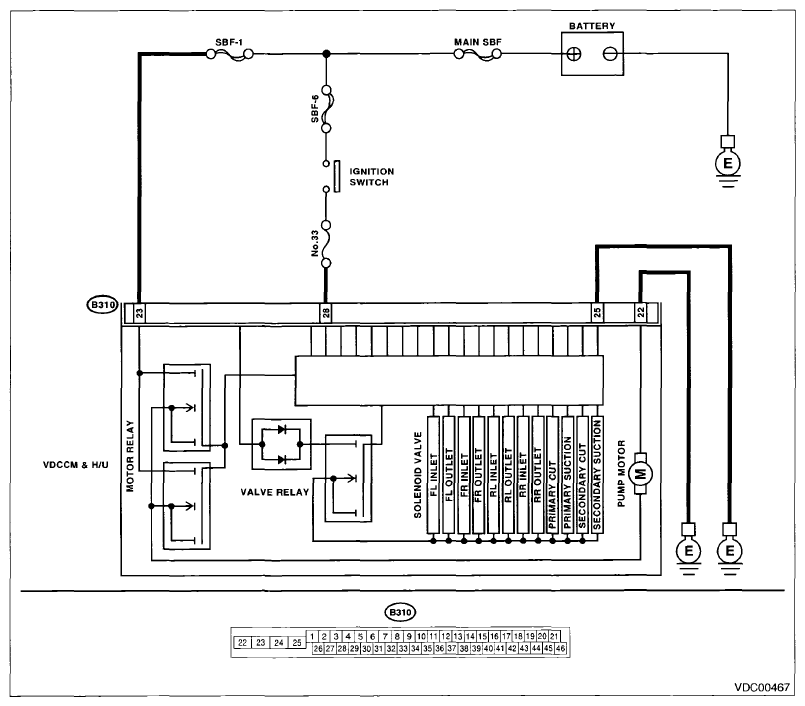

Fig 1: Motor And Motor Relay Wiring Diagram
G07666300Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE CHART

Step Check Yes No
1 CHECK VDCCM&H/U INPUT VOLTAGE.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from the VDCCM&H/U.
  3. Turn the ignition switch to ON.
  4. Measure the voltage between VDCCM&H/U connector and chassis ground.

    Connector & terminal

    (B310) No. 23 (+) - Chassis ground (-):

    (B310) No. 28 (+) - Chassis ground (-):

Is the voltage 10 - 15 V? Go to step 2.  Repair the VDCCM&H/U power supply circuit.
2 CHECK INSTALLATION OF MOTOR GROUND.  Is the motor ground terminal installation bolt tightened 33 N.m (3.4 kgf-m, 24.3 ft-lb)? Go to step 3.  Tighten the motor ground terminal installation bolt.
3 CHECK VDCCM&H/U GROUND CIRCUIT.
  1. Turn the ignition switch to OFF.
  2. Measure the resistance between VDCCM&H/U connector and chassis ground.

    Connector & terminal

    (B310) No. 25 - Chassis ground:

    (B310) No. 22 - Chassis ground:

Is the resistance less than 10 Ω? Go to step 4.  Repair the VDCCM&H/U ground harness.
4 CHECK VDCCM&H/U MOTOR RELAY.
Measure the resistance between VDCCM&H/U connector terminals.
Terminals
No. 23 - No. 22:
Is the resistance 1 MΩ or more? Go to step 5.  Replace the VDCCM&H/U. < Ref. to VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U) . >
5 CHECK POOR CONTACT OF CONNECTORS.
Turn the ignition switch to OFF.
Is there poor contact of connector between generator, battery and VDCCM&H/U? Repair the connector. Go to step .
6 CHECK VDCCM&H/U.
  1. Connect all connectors.
  2. Clear the memory. < Ref. to CLEAR MEMORY MODE . >
  3. Perform the Inspection Mode. < Ref. to INSPECTION MODE . >
  4. Read the DTC.
Is the same DTC displayed? Replace the VDCCM&H/U. < Ref. to VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U) . > Go to step .
7 CHECK OTHER DTC DETECTION.  Is any other DTC displayed? Perform the diagnosis according to DTC. < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > Temporary poor contact occurs.
NOTE: Though the ABS warning light remains on at this time, this is normal. Drive the vehicle at 12 km/h (7 MPH) or more in order to turn ABS warning light off. Be sure to drive the vehicle and check that the warning light goes off.
