Control Module I/O Signal: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

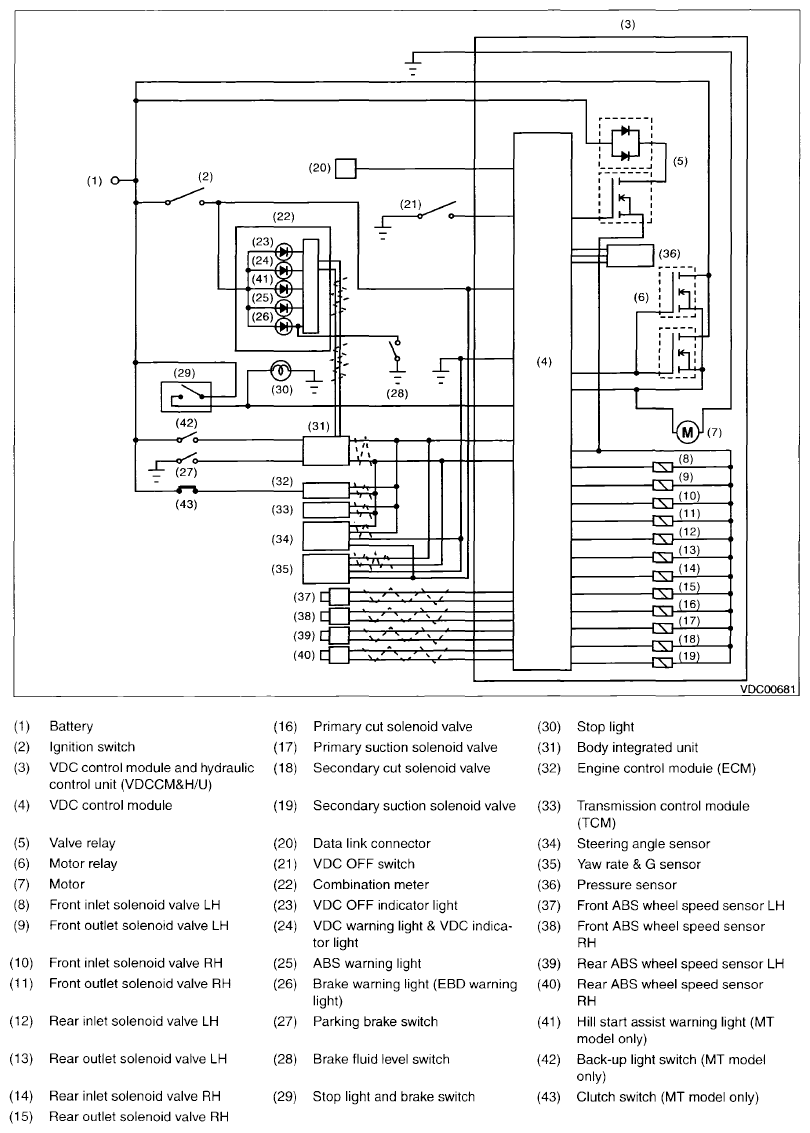

Fig 1: Control Module Wiring Diagram
G07666286Courtesy of SUBARU OF AMERICA, INC.
