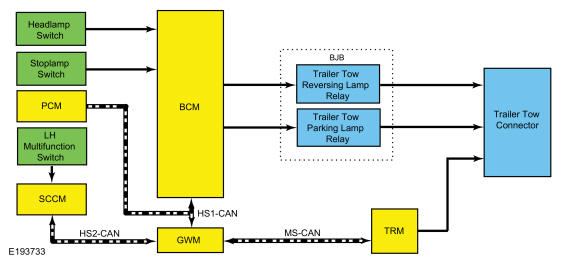

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
MS-CAN |
| 2 |
TRM |
| 3 |
Trailer tow connector |
| 4 |
BJB |
| 5 |
Trailer tow reversing lamp relay |
| 6 |
Trailer tow parking lamp relay |
| 7 |
HS-CAN1 |
| 8 |
BCM |
| 9 |
Headlamp switch |
| 10 |
Stoplamp switch |
| 11 |
GWM |
| 12 |
SCCM |
| 13 |
LH steering column multifunction switch |
| 14 |
HS-CAN2 |
| 15 |
PCM |
