Telematics Control Unit (TCU) Module Antenna Coaxial Cable: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The original equipment TCU antenna cable is part of the wiring harness and cannot be removed. This procedure refers to replacement of the cable only by overlaying the cable.
- Remove the following components for access to the TCU antenna cable.
- Remove the A-Pillar trim panels. Refer to: A-PILLAR TRIM PANEL .
- Remove the B-Pillar trim panels. Refer to: B-Pillar Trim Panel .
- Remove both front seats.
- Remove the front floor console. Refer to: FLOOR CONSOLE .
- Remove the TCU antenna. Refer to: Telematics Control Unit (TCU) Module Antenna .

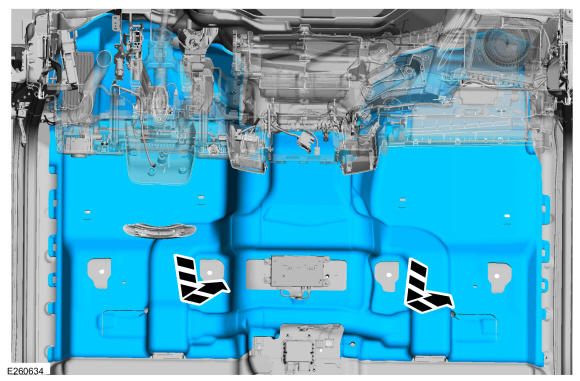

- Remove the front carpet.

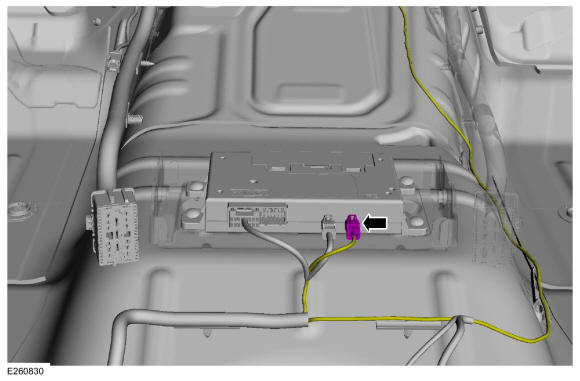

- Disconnect the TCU antenna coaxial cable from the TCU.
