Telematics Control Unit (TCU) Module Antenna Coaxial Cable: Installation
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
-
- Cut the end off the existing TCU antenna coaxial cable.

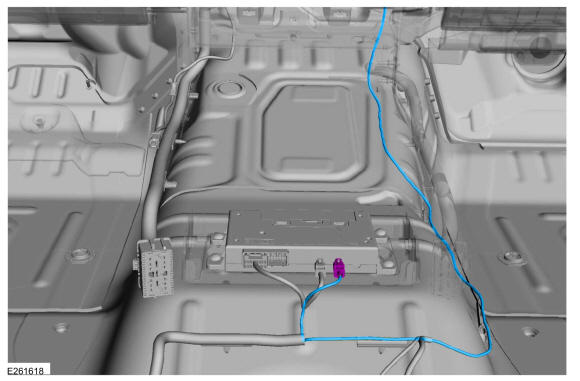

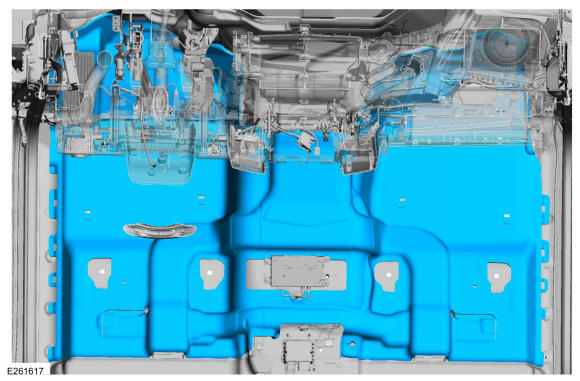

- Route the new TCU antenna coaxial cable following the routing shown in the figure.
- Secure the new TCU antenna coaxial cable, as necessary, to prevent NVH (noise, vibration and harshness) concerns

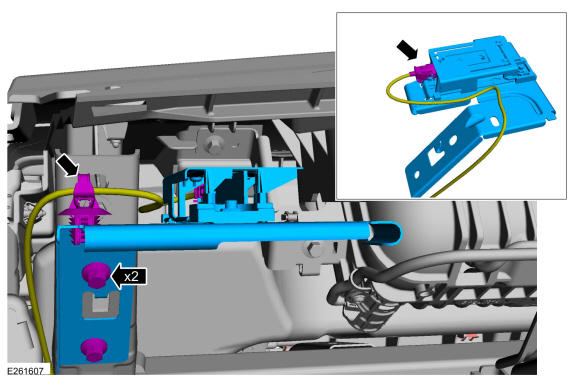

- Install the TCU antenna, connect the electrical connector and install the wire harness guide.
Torque: 71 lb.in (8 Nm)
- Install the instrument panel. Refer to: Instrument Panel .
-
- Cut the end off the existing TCU antenna coaxial cable.

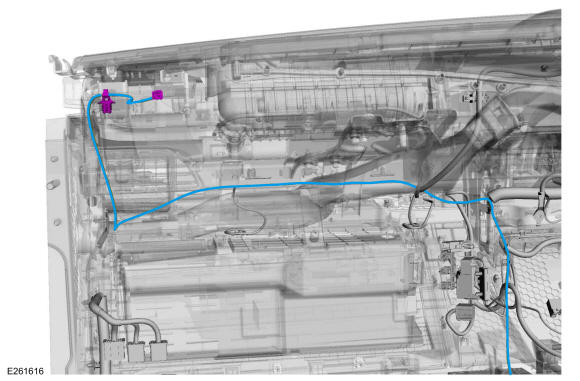

- Route the new TCU antenna coaxial cable following the routing shown in the figure.
- Secure the new TCU antenna coaxial cable, as necessary, to prevent NVH (noise, vibration and harshness) concerns
- Install the front carpet.
- Install the following components.
- Install the front floor console. Refer to: FLOOR CONSOLE .
- Install both front seats.
- Install the B-Pillar trim panels. Refer to: B-Pillar Trim Panel .
- Install the A-Pillar trim panels. Refer to: A-PILLAR TRIM PANEL .
